LAS8001M Drop Seal

A slimline, mortised automatic drop seal for timber sliding doors. The end plate cleverly conceals a magnet which engages with a button in the frame, to assist the door closure and ensures the gasket remains in the dropped position without forcing the door open. The seal features a high efficiency mechanism, which lifts the seal clear of the floor as soon as the door is opened by a few millimetres; resulting in lower door operating forces.

LAS8001M
LAS8001M

  • Performance

    • Protects against sound, smoke, draught, light and insects.
    • Suitable for wheeled traffic.

    Location

    • Sliding doors.

    Use with

    • Any perimeter seal. Any threshold plate.

    Min/max gap size

    • 1mm/13mm.

    Seal material

    • Grey or black silicone rubber.

    Standard lengths

    • 820mm (may be cut back to 735mm)
    • 920mm (may be cut back to 820mm)
    • 1070mm (may be cut back to 920mm)
    • 1220mm (may be cut back to 1070mm)
    • 1400mm (may be cut back to 1220mm).

    Fixing

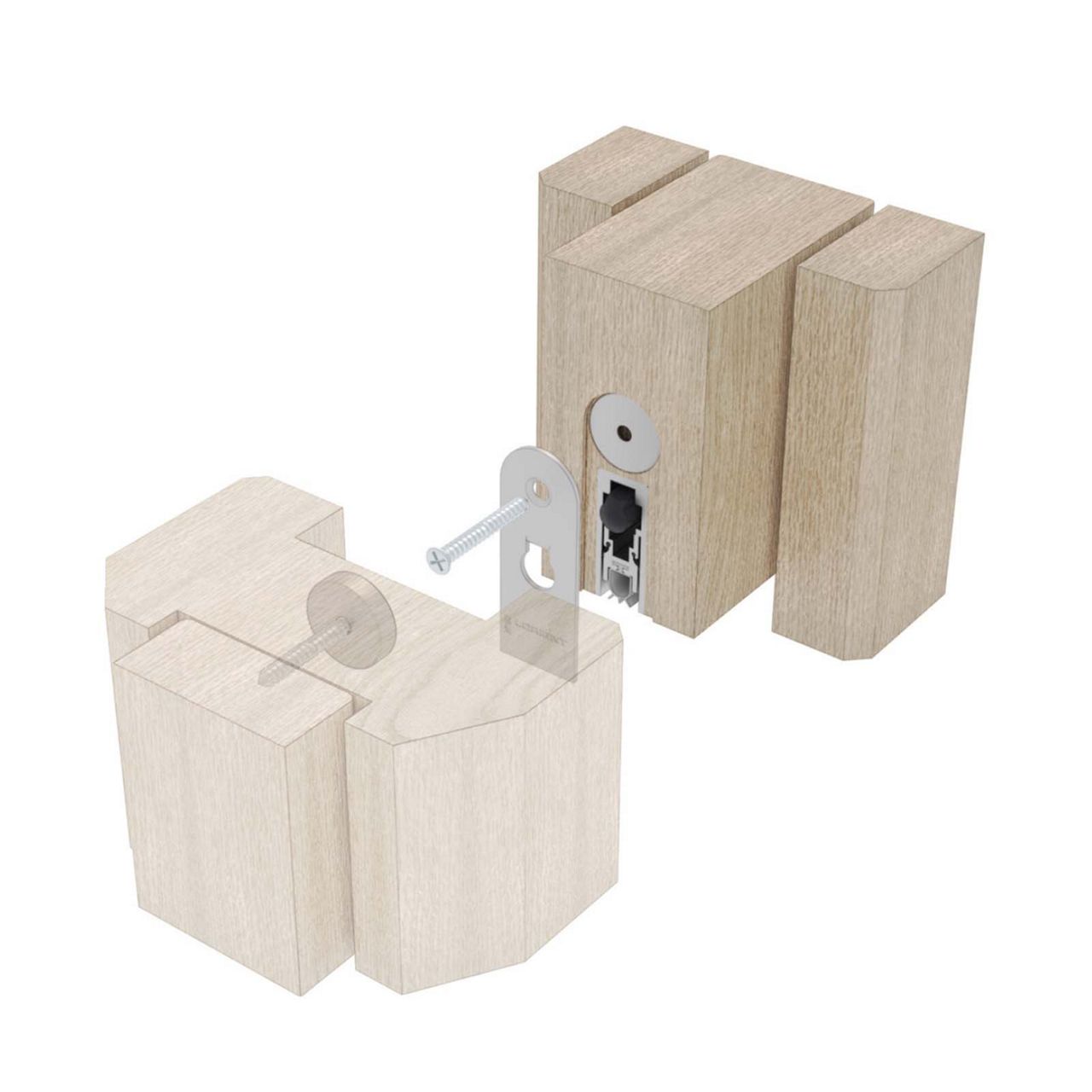

    • Fixing screws are supplied. This seal is mortised. Pre-drilled radiused end plates are supplied which also secure the product in place. (Square end plates available on request). Magnetised button is supplied to fix into the frame.

    Adjustment

    • Self-levelling on uneven surfaces. Can be adjusted independently of the fixing screws.

    Finishes

    • Silver anodised aluminium with silver end plates, and grey silicone rubber gasket.
    • Silver anodised aluminium with bronze end plates, and black silicone rubber gasket.
    • Chrome finish magnetised button.
  • LAS8001M Datasheet(PDF, 288 KB)
    LAS8001M Fitting Instructions(PDF, 355 KB)
