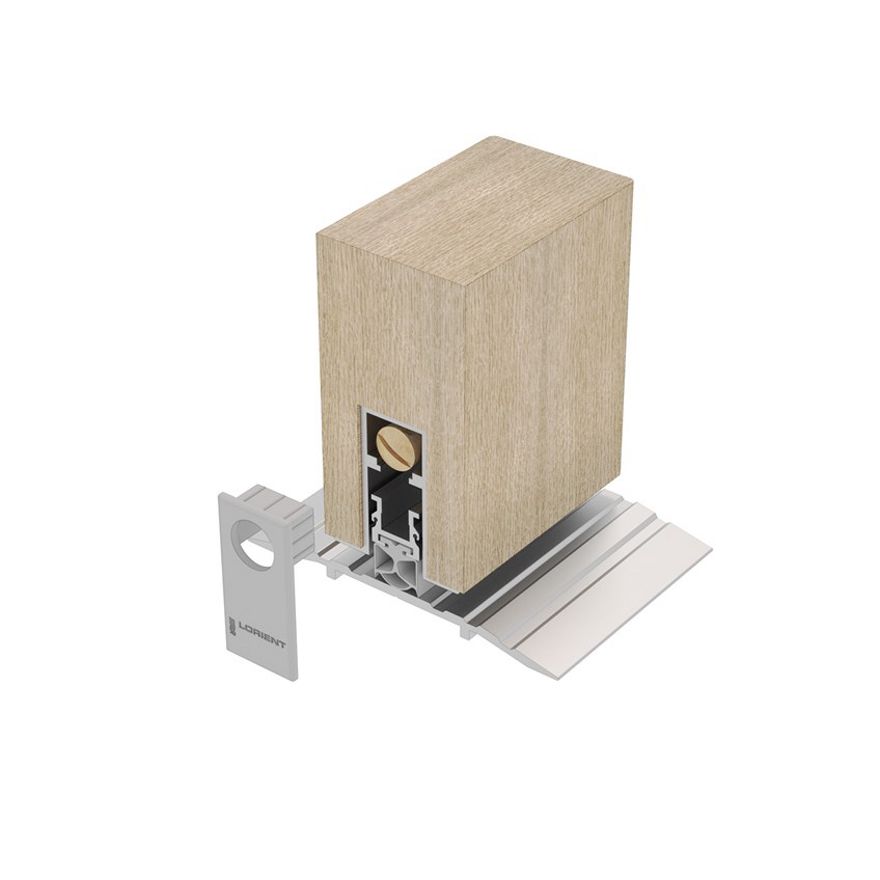

LAS8007 si Drop Seal

This heavy duty fully mortised aluminium automatic drop seal features a silicone rubber gasket and internal fins. It is used to close the gap under single swing doors to maintain the acoustic, smoke and energy efficiency performance. The seal incorporates a high efficiency spring loaded mechanism that extends the seal as the door swings shut and automatically retracts it as the door is opened by just a
few centimetres.

LAS8007 si Drop Seal
LAS8007 si Drop Seal

  • Key benefits

    • Dual internal sealing fins enhance acoustic and smoke containment performance.
    • Supplied with high performance fire rated silicone rubber gasket.
    • Fully automatic, no power connection required.
    • Simple adjustment to suit varying door gap requirements.
    • Proven long term reliability.

    Standard lengths
    820mm (may be trimmed back to 720mm)
    920mm (may be trimmed back to 820mm)
    1070mm (may be trimmed back to 920mm).

    Gap sizes
    Up to 15mm.

    Fixing method
    Fixing screws are supplied, fixing holes are pre-drilled through the flanges.

    Finishes
    Silver anodised aluminium, grey silicone rubber gasket, grey end caps.

    Approvals
    Fire:     Approved for use on proprietary AS1905.1 fire doors for up to 4 hour fire rating.
    Smoke: AS1530.7 smoke test data on AS6905 compliant smoke door assemblies Conforms with BCA Specification C3.4 smoke sealing requirements.
    Sound: Acoustically tested in accordance with ISO10140-2 and AS/NZS717.1 with ratings up to 40Rw on appropriate rated assemblies.
    Durability: Long term mechanical test, completing 100,000 cycles without failure.

  • General
    LAS8007 si datasheet(PDF, 403 KB)
    LAS8007 si drop seal fitting instruction(PDF, 286 KB)
    Lorient Architectural, Acoustic, Smoke and Fire Containment Systems brochure(PDF, 6 MB)
    CAD
    LAS8007 si CAD(DXF, 2 MB)
