LSR3011 | Lorient

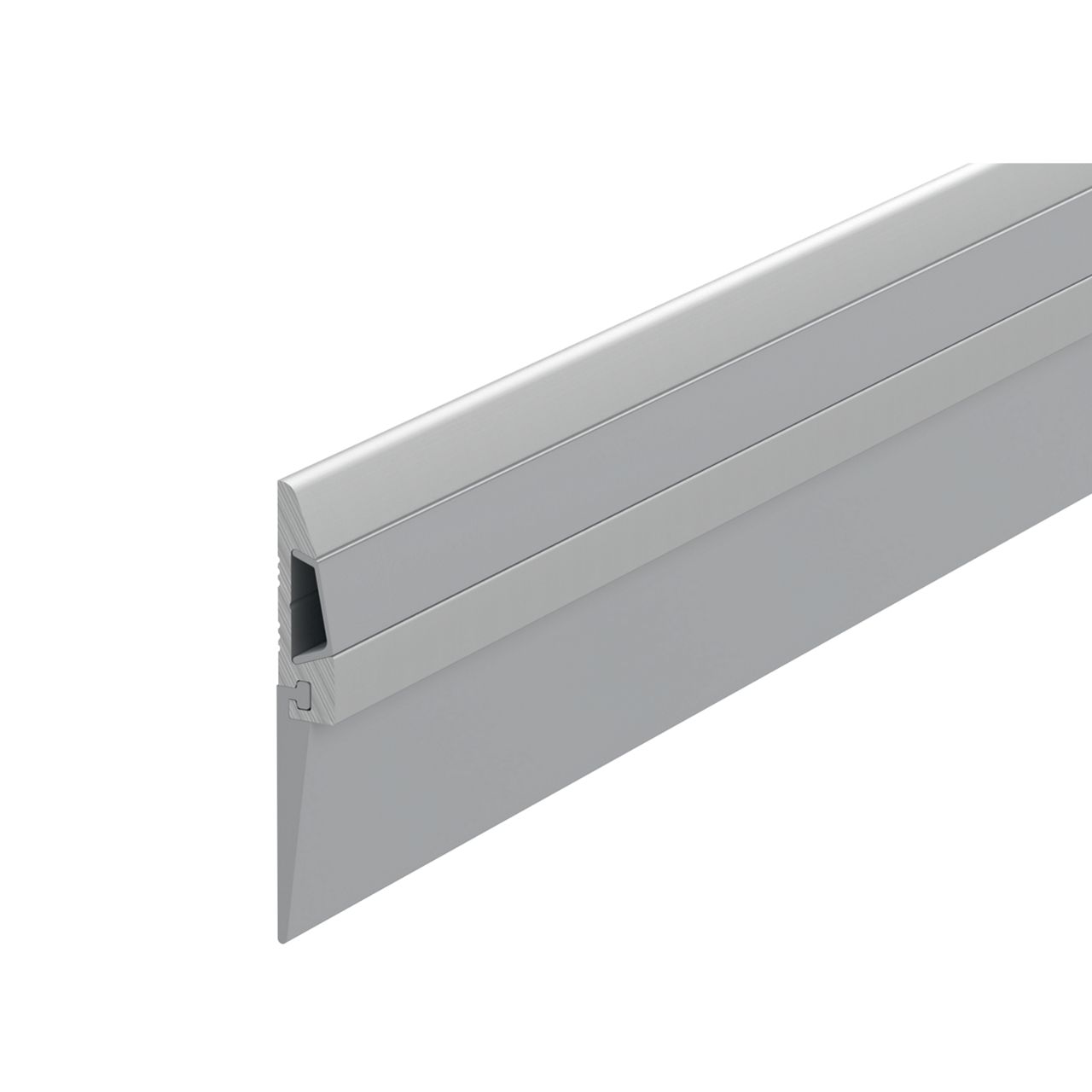

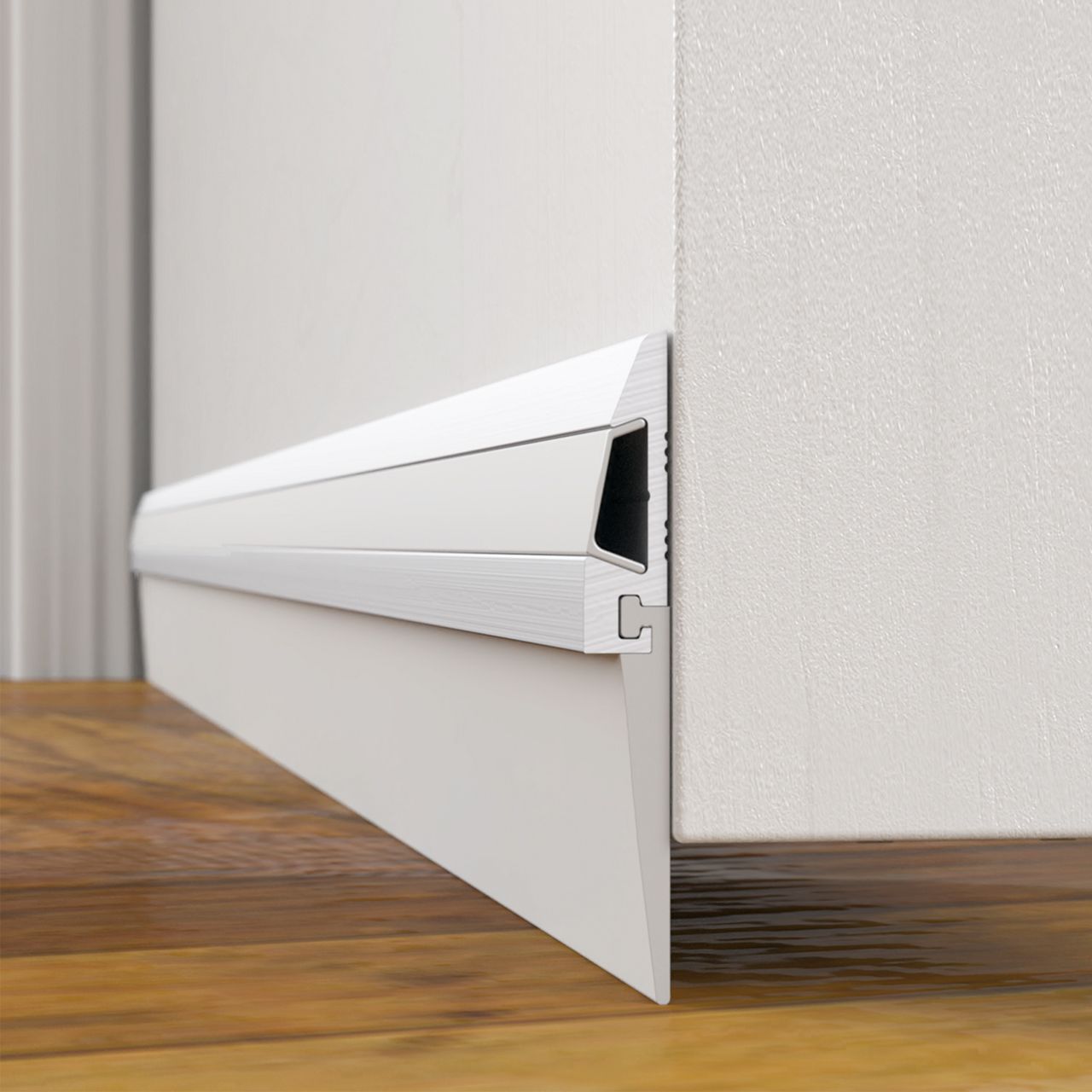

A stylish, blade-type door bottom seal for easy face-fixed installations. Featuring a curved profile and flexible cover strip to conceal fixings.

LSR3011

Acoustic protection
Light protection
Cold protection
Draught protection
Insects + vermin
BAL<29
Approved for use on fire door assemblies for Bushfire attack levels of BAL<29

Key benefits

Curved profile for enhanced aesthetics.

Decorative cover strip to conceal fixings.

Easily accommodates larger gap sizes.

Hard-wearing and durable.
Performance
Protects against sound, light, cold, draught, insects and vermin.
Approvals
Bushfire: Approved for use on fire door assemblies for Bushfire attack levels of BAL<29.
Location

Opening side of the door.

Closing side of the door.

Ideal for security screens.
Gap size
Up to 20mm.
Length
1000mm.
Seal material
Aluminium carrier with a flexible silicone rubber gasket.
Fixing method

Fixing screws are supplied.

Fixing holes are pre-drilled and slotted to allow the seals to be adjusted and positioned accurately.
Finishes
Silver anodised aluminium with grey cover strip and grey silicone rubber blade.

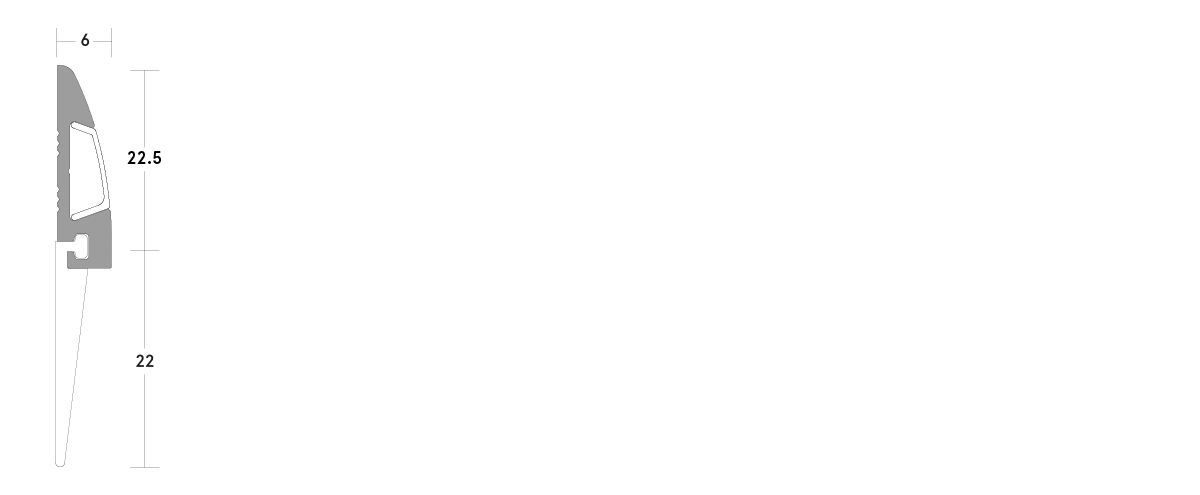

Dimensions
