LSR3012

Key benefits

• Weatherproof door seal.
• Decorative cover strip to conceal fixings.
• Easily accommodates larger gap sizes.
• Hard-wearing and durable.
• Durable silicone rubber gaskets.

Performance
Protects against weather, light, cold, draught, bushfire embers, sound, insects and vermin.

Approvals
Bushfire: Approved for use on fire door assemblies for Bushfire attack levels of BAL<29.

Location

• Opening side of the door.
• Closing side of the door.
• Ideal for security screens.

Gap size
22mm - 24mm.

Standard length
1000mm.

Seal material

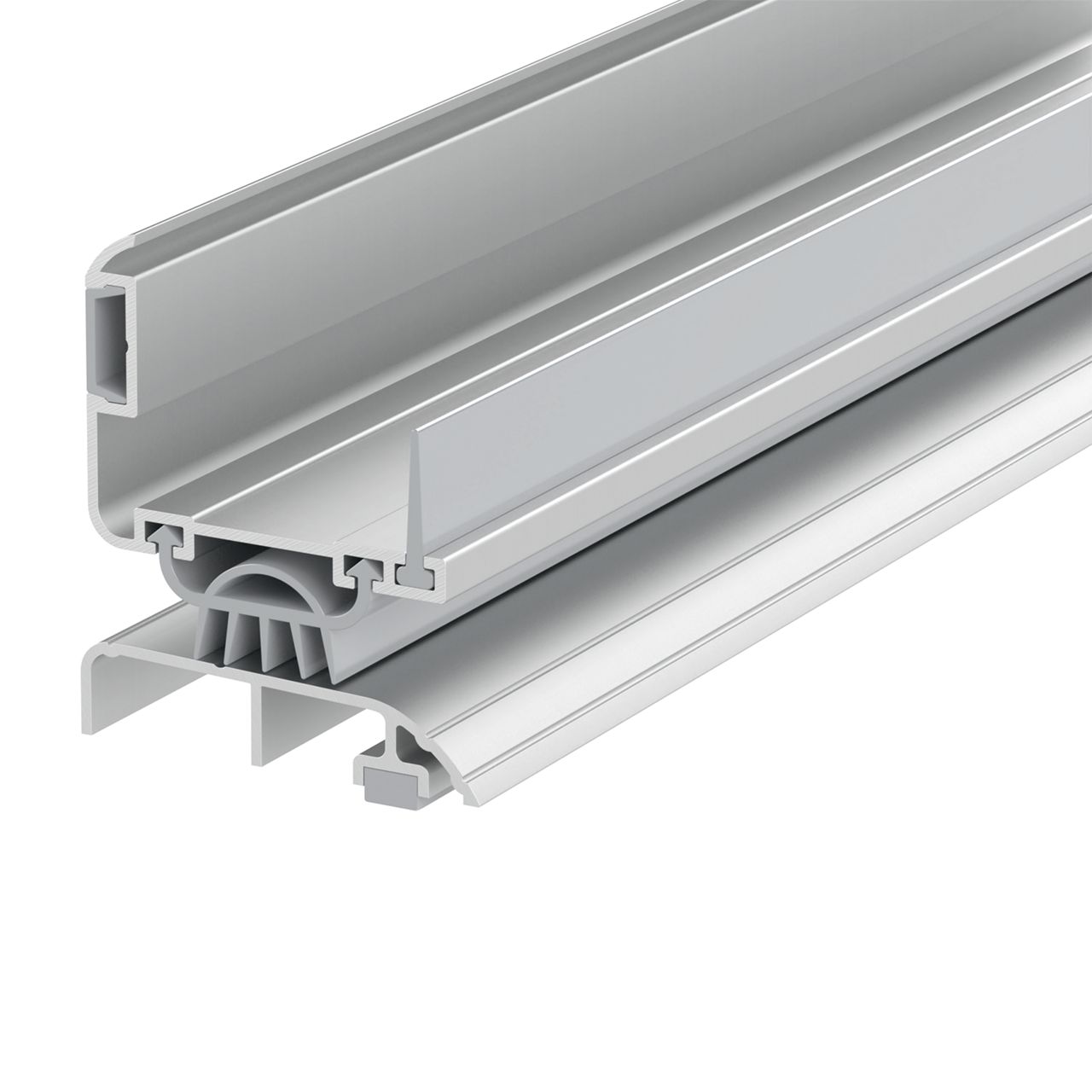

Aluminium carrier with a flexible silicone rubber gasket.

Fixing method
Threshold plate: Fixing holes are pre-drilled for ease of application. Fixing screws are supplied.
Door bottom seal: Fixing holes are pre-drilled and slotted to allow the seals to be adjusted and positioned accurately. Fixing screws are supplied.A snap-fit cover strip to conceal fixings is supplied.

Finishes
Silver anodised aluminium with grey cover strip and grey silicone rubber blade.

Dimensions
