Door bottom seal ideal for acoustic and smoke containment.

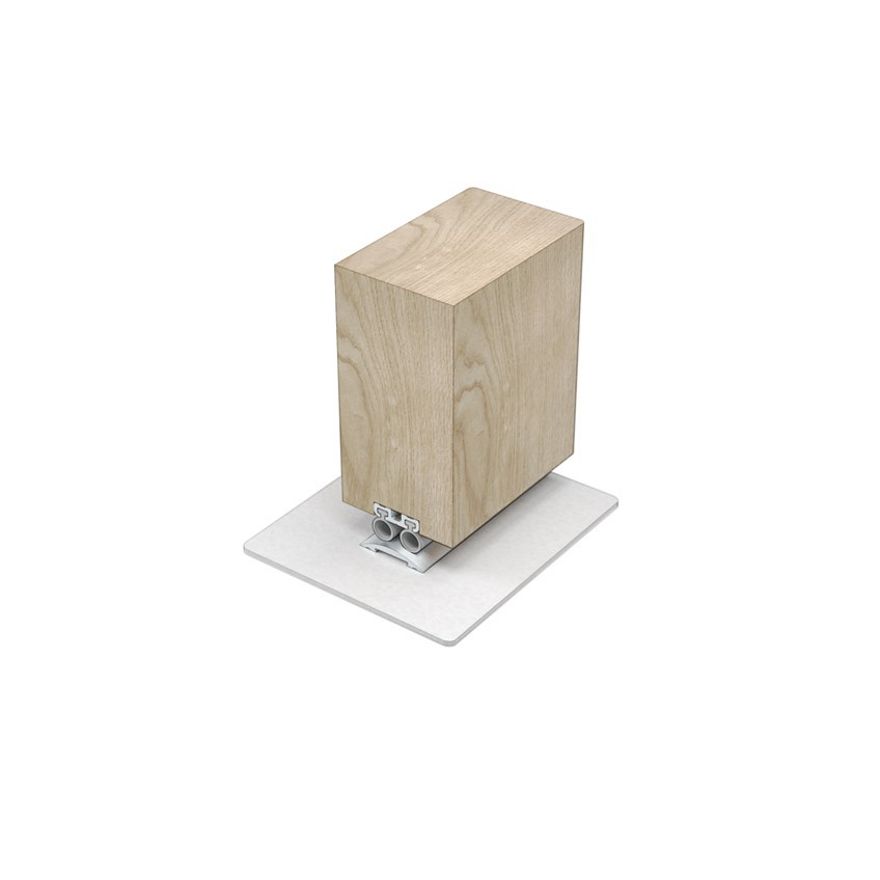

LAS3003 si Door Bottom Seal
Cookie consent
This video is hosted by YouTube. By showing the external content you accept the terms and conditions of
www.youtube.com.
*Your choice will be saved in a cookie until you have closed your browser.
Key benefits
Simple, effective sealing solution.
Easily retrofitted to existing door assemblies.
Durable, hard wearing silicone rubber gasket.
Standard lengths
1m and 2.1m. Other lengths to special order.
Gap sizes 7mm/13mm
Fixing method Face-fixed, semi-rebated or fully rebated. Fixing screws are supplied. Fixing holes are pre-drilled. Once the aluminium carrier is fixed, the rubber gasket slides easily into place. Note: these seals cannot be adjusted once fitted.
Finishes Silver anodised aluminium with grey silicone rubber insert.
Approvals Smoke: Conforms with BCA Specification C3.4 smoke sealing requirements. Durability: Long term mechanical test, completing 1,000,000 cycles without failure.
This fully mortised aluminium automatic drop seal features a silicone rubber gasket and internal fins. It is used to close the gap under single swing doors to maintain their acoustic, smoke or energy efficiency performance.
LAS8002 si Drop Seal
This face-fixed (or semi-mortised) aluminium automatic drop seal features a silicone rubber gasket and internal fins. It is used to close the gap under single swing doors to maintain their acoustic, smoke or energy efficiency performance.
LAS8003 si Drop Seal
This face fixed (or semi mortised) aluminium automatic drop seal is used to close the gap under single swing doors to maintain their acoustic, smoke or energy efficiency performance.
LAS8006 si Drop Seal
This face-fixed (or semi-mortised) aluminium automatic drop seal features a silicone rubber gasket and internal fins. It is used to close the gap under single swing doors to maintain their acoustic, smoke or energy efficiency performance.
LAS4002 Threshold Plate
Used where the door sill is uneven, this threshold plate creates a level sealing surface that greatly enhances the ability of door bottom seals to restrict the passage of sound, smoke, energy or weather.
LAS3001 si Door Bottom Seal
Door bottom seal ideal for acoustic and smoke containment.
LAS3002 si Door Bottom Seal
Door bottom and meeting stile seals ideal for acoustic and smoke containment.
LAS3004 si Door Bottom Seal
A heavy duty sweep action door bottom seal.
LAS3007 si Door Bottom Seal
A weather proof seal which can be fitted without removing the door, and can be used with a choice of threshold plates.
