LAS3008 si Door Bottom Seal

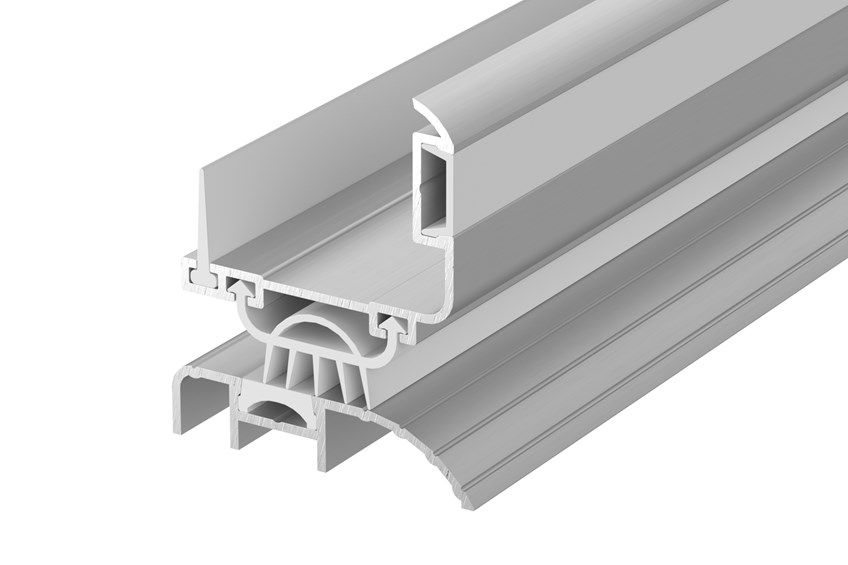

A multi-blade, storm-proof seal combination consisting of the LAS3007 si door bottom seal and LAS4015 threshold plate. Durable, anodised aesthetic finish.

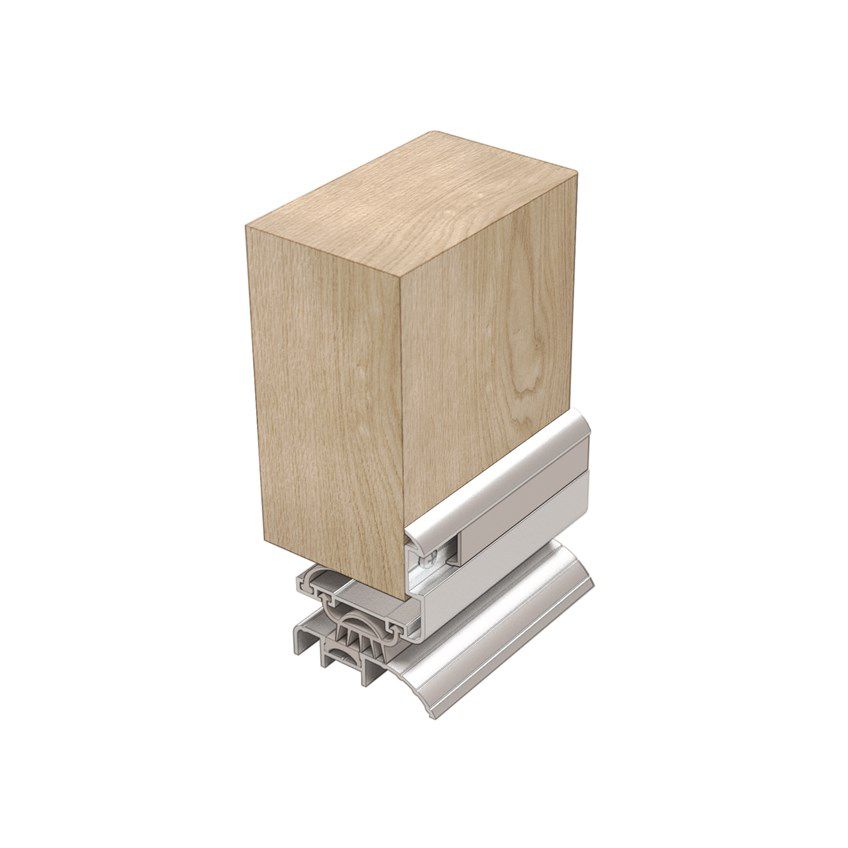

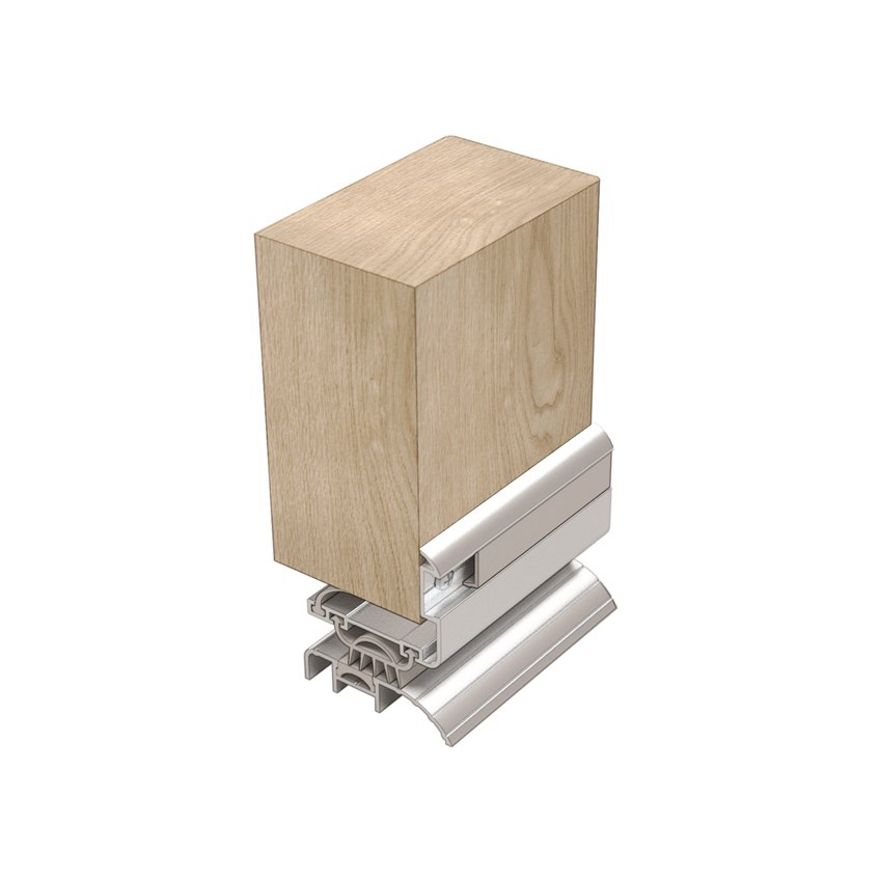

It can be fitted without removing the door. Concealed fixings, pre-drilled and slotted holes on LAS3007 si for easy adjustment.

LAS3008 si Door Bottom Seal
LAS3008 si Door Bottom Seal

  • Key benefits

    • Durable multi-bladed silicone seal.
    • Snap-fit cover strip conceals fixing points.
    • Slotted fixing holes provide
    • simple adjustment.
    • Aesthetic anodised finish.

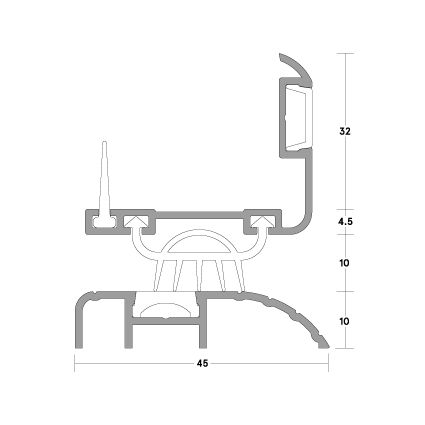

    Gap size

    • 26mm/32mm.

    Standard lengths

    • 1m and 2.1m. Other lengths to special order.

    Approvals

    • Smoke: Conforms with BCA Specification C3.4 smoke sealing requirements.
    • Durability: Long term mechanical test, completing 100,000 cycles without failure.

    Fixing method

    • LAS3007 si – Self-tapping wood screws are supplied (self-drilling and self-tapping screws for metal construction available on request). Fixing holes are predrilled and slotted to allow the seals to be adjusted and positioned accurately.
    • A PVC cover strip to conceal fixings is supplied.
    • LAS4015 – Fixing screws are supplied. PVC cover strip to conceal fixings is supplied.

    Finishes

    • LAS3007 si – Silver anodised aluminium with grey cover strip and grey silicone rubber gasket.
    • LAS4015 – Silver anodised aluminium with grey cover strip.
  • General
    LAS3008 si datasheet(PDF, 375 KB)
    LAS3008 si door bottom fitting instruction(PDF, 393 KB)
    Lorient Architectural, Acoustic, Smoke and Fire Containment Systems brochure(PDF, 6 MB)
    CAD
    LAS3008 CAD drawing(DXF, 271 KB)
