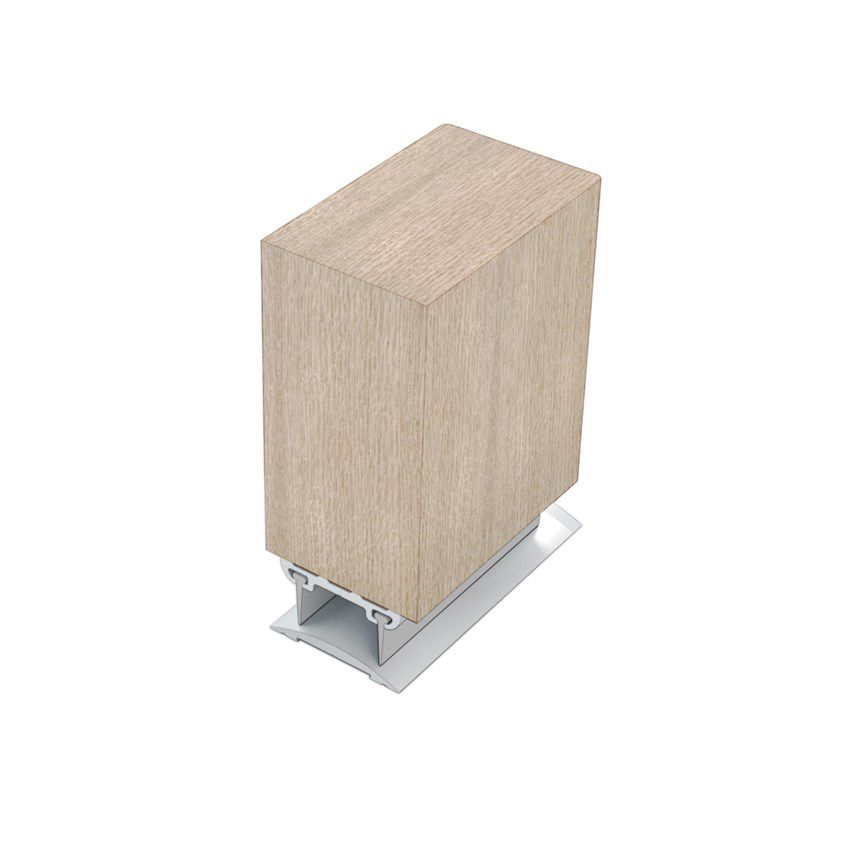

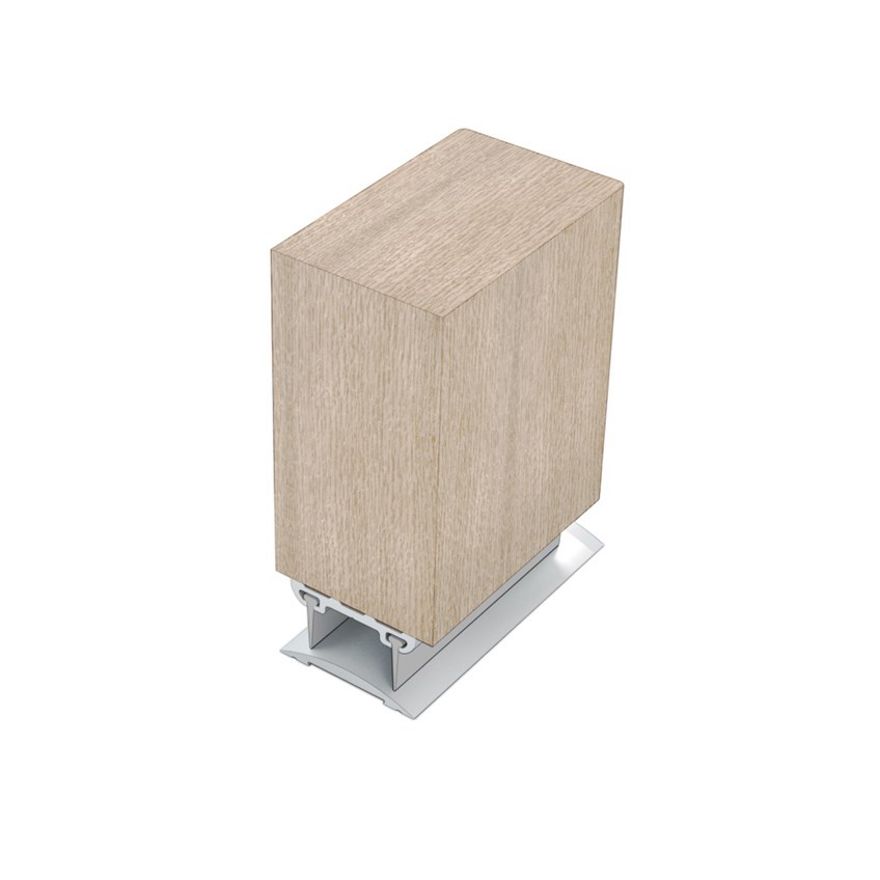

LAS3009 si Door Bottom Seal

Medium duty door bottom seal with slide-in gaskets. Suitable for single and double swing doors, as well meeting stiles (one leaf only).

LAS3009 si Door Bottom Seal
LAS3009 si Door Bottom Seal

Cookie consent

This video is hosted by YouTube. By showing the external content you accept the terms and conditions of www.youtube.com.

*Your choice will be saved in a cookie until you have closed your browser.

Performance
Protects against sound, smoke, weather, draught, light and insects when fitted with a suitable threshold seal.

Location
Single and double swing doors.

Use with
Practically any threshold plate.

Min/max gap size
16mm/22mm.

Seal material
Flexible silicone rubber.

Standard lengths
1m and 2.1m. Other lengths to special order.

Fixing
Self-tapping wood screws are supplied (self-drilling and self-tapping screws formetal construction available on request).
Fixing holes are pre-drilled. Once the aluminium carrier is fixed, the rubber gasket slides easily into place.
Note: these seals cannot be adjusted once fitted.

Finishes
Silver anodised aluminium with grey silicone rubber blade.
Bronze anodised aluminium with black silicone rubber blade.

  • General
  • LAS3009 si datasheet(PDF, 173 KB)
  • LAS3009 si fitting instruction(PDF, 290 KB)
  • CAD
  • LAS3009 CAD drawing(DXF, 329 KB)
