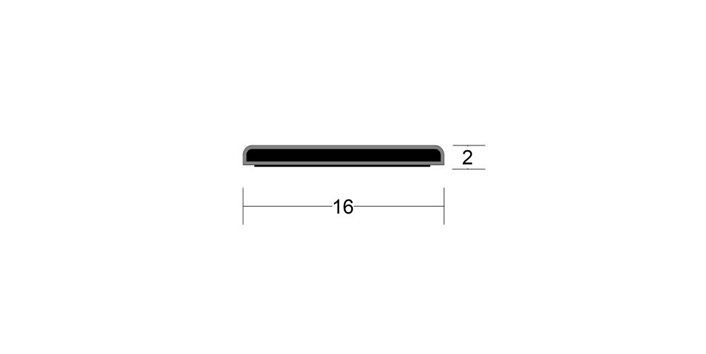

LAS1602 Intumescent Fire Seal

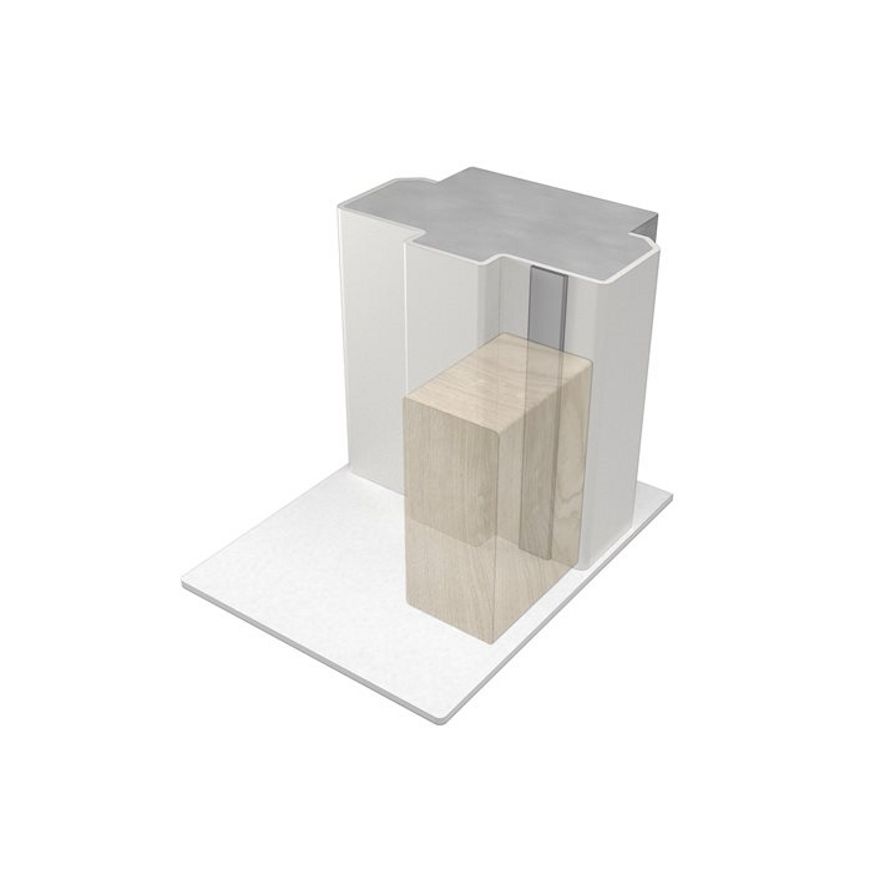

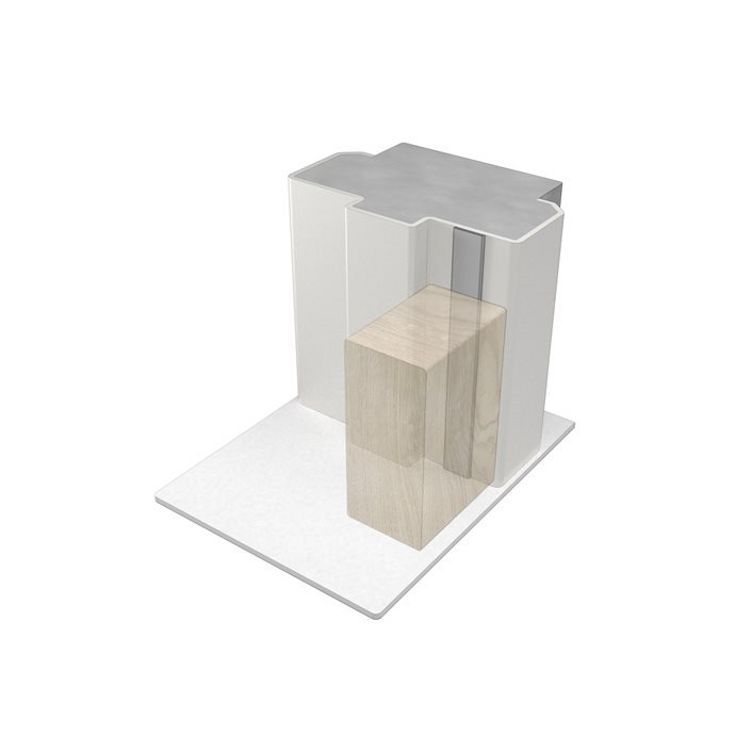

This slim flexible intumescent fire seal is fitted to door frames to enhance their fire resistance characteristics. When exposed to elevated temperatures the intumescent core rapidly expands in volume to restrict the passage of fire, hot smoke and toxic gases.

LAS1602 Intumescent Fire Seal
LAS1602 Intumescent Fire Seal

  • Key benefits

    • Ideal for use in fire engineering solutions to enhance fire performance and limit the spread of hot gases around the edges of doors.
    • Easily retrofitted to existing door assemblies.
    • Simple peel-and-stick installation, our aggressive self-adhesive backing is tested on many surfaces to ensure seal longevity.
    • Supplied in standard length coils to minimise on-site wastage.
    • Seal surface contains anti-microbial additives to restrict bacterial growth.
    • Use in conjunction with a LAS1212 Batwing® seal and LAS8001 si drop seal for a complete “life safety door” sealing solution.

    Standard lengths
    75m coils.

    Gap sizes
    2.5mm - 3mm.

    Fixing method
    Aggressive film backed self-adhesive.

    Finishes
    Standard colour: Black.

    Approvals
    Fire: Approved for use on proprietary AS1905.1 fire door assemblies for up to 4 hour fire rating.

  • General
    LAS1602 datasheet(PDF, 138 KB)
    LAS1602 fitting instruction(PDF, 319 KB)
    Lorient Architectural, Acoustic, Smoke and Fire Containment Systems brochure(PDF, 6 MB)
    CAD
    CAD drawing LAS1602(DWG, 92 KB)
