LAS400TF Fire & Smoke Seal for Steel Door Frames

This slim high performance intumescent fire and smoke seal is designed to upgrade existing door assemblies that are required to restrict the passage of medium and hot temperature smoke. The dual flexible fins retard the spread of smoke and when exposed to elevated temperatures the intumescent core rapidly expands in volume to restrict the passage of fire, hot smoke and toxic gases.

LAS400TF Fire & Smoke Seal for Steel Door Frames
LAS400TF Fire & Smoke Seal for Steel Door Frames

  • Key benefits

    • Slim-line retrofit fire and smoke upgrade solution.
    • Simple peel-and-stick installation, our aggressive self-adhesive backing is tested on many surfaces to ensure seal longevity.
    • Ideal for use in fire engineering solutions to limit the spread of smoke and hot gasses around the edges of doors.

    Standard lengths
    1m, 2.1m and 2.75m.

    Gap sizes
    3mm.

    Fixing method
    Aggressive film backed self-adhesive.

    Finish
    White.

    Approvals
    Fire: Tested in accordance with AS1530.4 on proprietary AS1905.1 fire door assemblies for up to 4 hour rating.

  • General

    LAS400TF datasheet(PDF, 161 KB)
    Lorient Architectural, Acoustic, Smoke and Fire Containment Syst(PDF, 6 MB)

    CAD

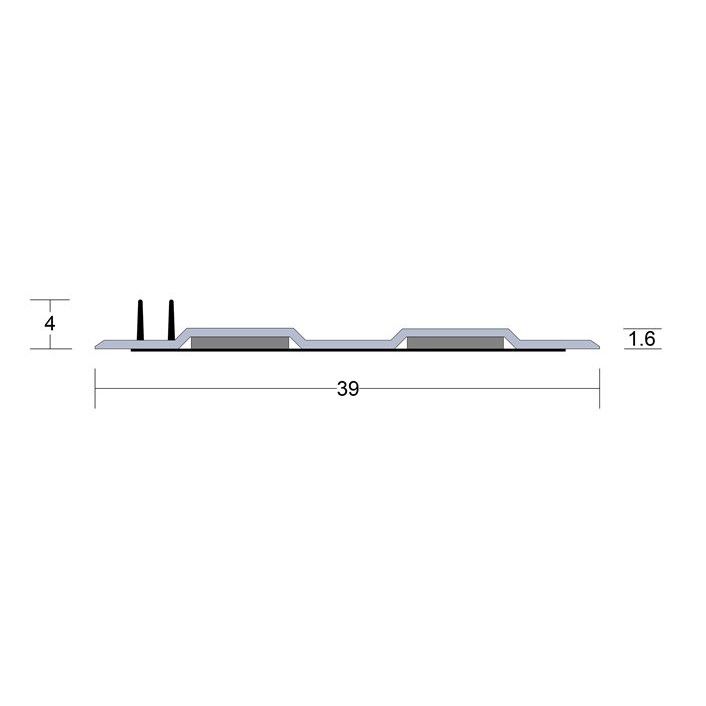

    CAD drawing LAS400TF(DWG, 95 KB)
