Fire Door Ventilation Grilles

Fire rated door grille kit approved on variouos fire doors.

System Number	Building Element	Max Size	FRL	System Detail	Approval Reference	Standard Version
Fire Door 1	E-core fire doors	600mm x 300mm 300mm x 300mm	Up to -/120/30	Mini & Maxi doors up to 1 grilles per leaf	EXOVA FAS240056	AS1530.4:2014
Fire Door 2	Firecore TVC fire doors	600mm x 600mm 600mm x 300 mm 450mm x 450mm 300mm x 300mm	Up to -/240/30	Mini & Maxi doors up to 2 grilles per leaf	CSIRO FCO 3457	AS1530.4:2014
Fire Door 3	Pyropanel FR	600mm x 600mm 600mm x 300mm 450mm x 450mm 300mm x 300mm	Up to -/120/30	Mini & Maxi doors up to 2 grilles per leaf	EXOVA EWFA 27704400	AS1530.4:2014

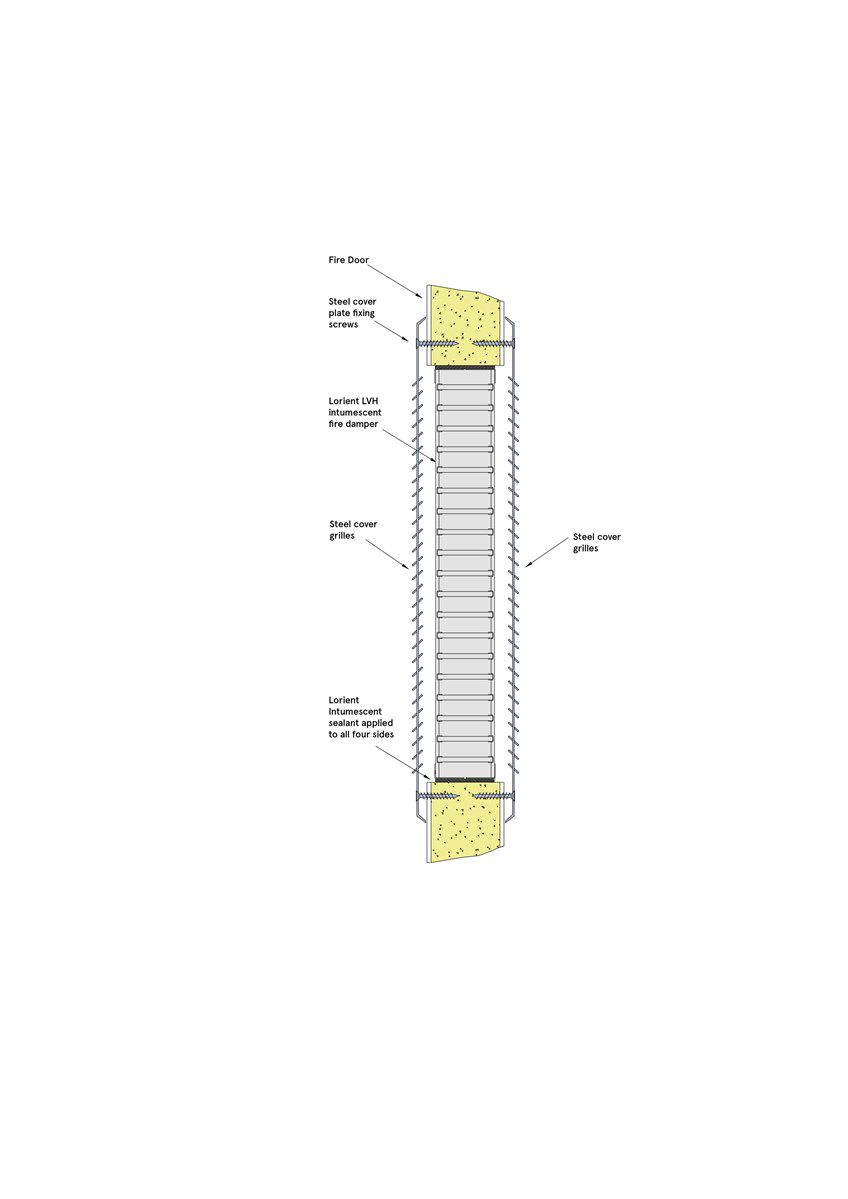

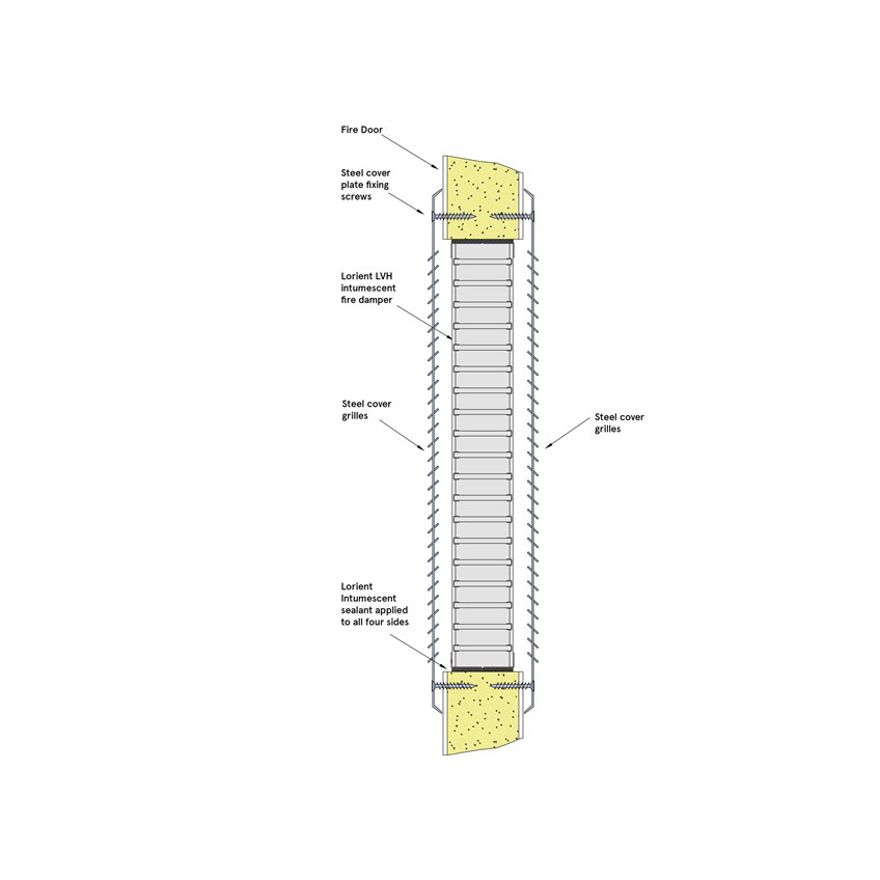

Product: LVH Door Grille Kit
