Fire Rated Plasterboard Walls

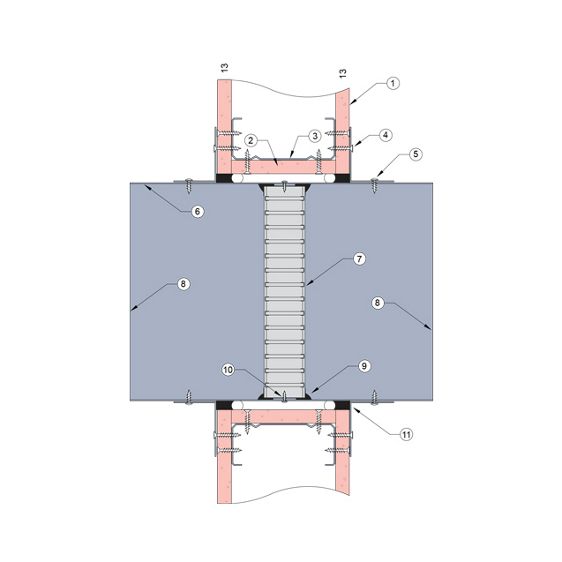

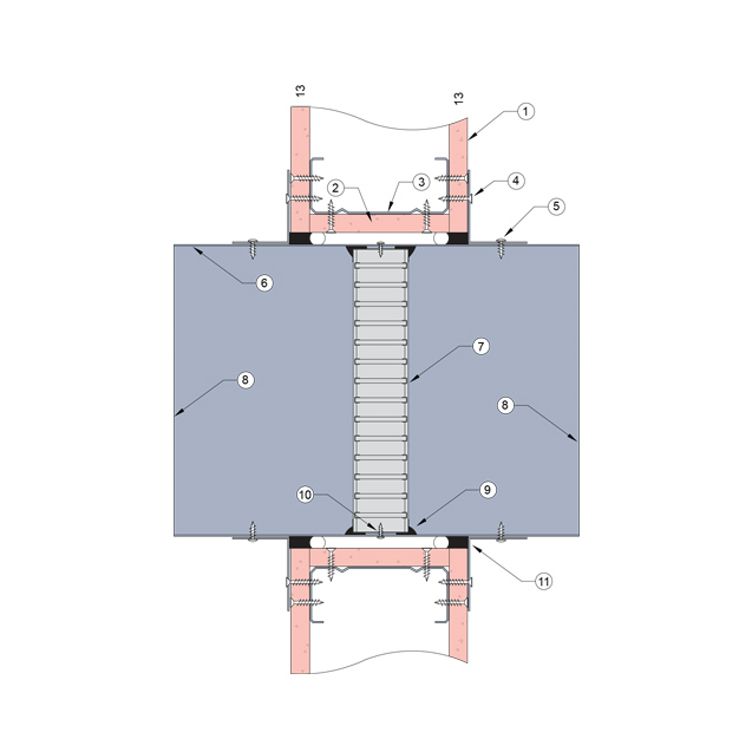

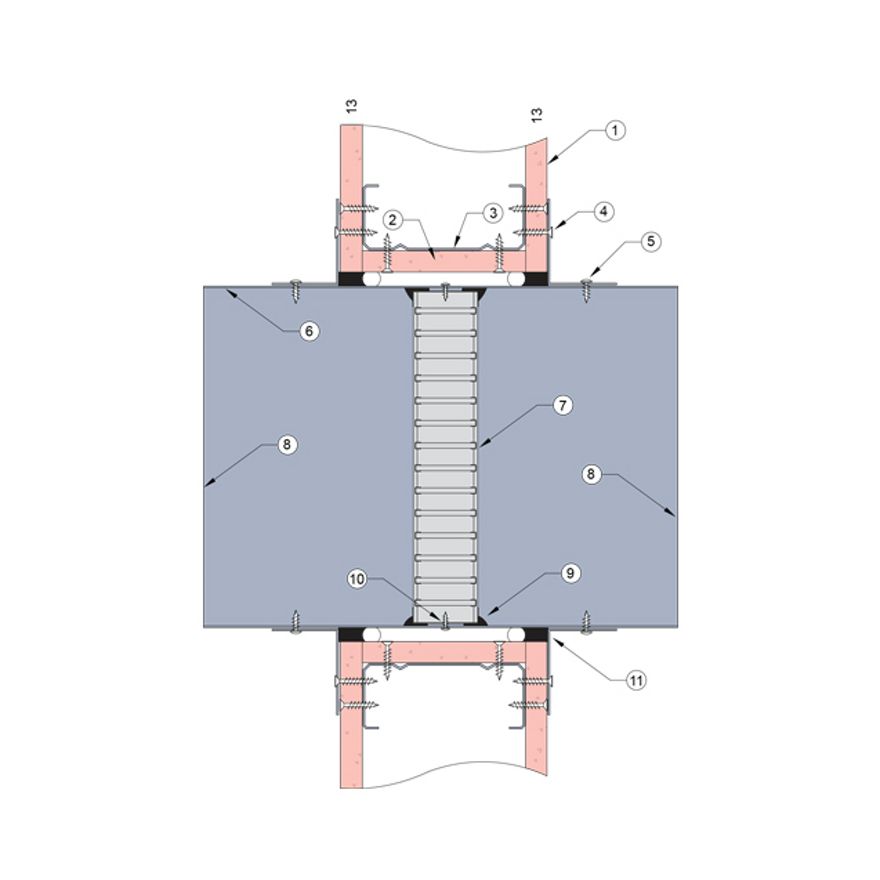

Damper installation system approved on plasterboard stud wall sytem.

System Number	Building Element	Product	Max Size	FRL	System Detail
Stud Wall 1	FR Plasterboard steel stud wall	LVH44C Circular	Up to 450mm diameter	-/60/30	13mm + 13mm steel stud wall
Stud Wall 2	FR Plasterboard steel stud wall	LVH44	600mm x 600mm	-/60/30	13mm + 13mm steel stud wall
Stud Wall 3	FR Plasterboard steel stud wall	LVH44	600mm x 600mm	-/90/30	16mm + 16mm steel stud wall
Stud Wall 4	FR Plasterboard steel stud wall	LVH44C Circular	Up to 450mm diameter	-/90/30	16mm + 16mm steel stud wall
Stud Wall 5	FR Plasterboard steel stud wall	LVH44	600mm x 600mm	-/120/30	2 x 13mm or 2 x 16mm steel stud wall
Stud Wall 6	FR Plasterboard steel stud wall	LVH44C Circular	Up to 450mm diameter	-/120/30	2 x 13mm + 2 x 13mm steel stud wall
Stud Wall 7	FR Plasterboard steel stud wall	LVH44C Circular	Up to 450mm diameter	-/120/30	2 x 16mm + 2 x 16mm steel stud wall
Stud Wall 8	FR Plasterboard timber stud wall	LVH44	600mm x 600mm	-/120/30	2 x 13mm or 2 x 16mm steel stud wall
Stud Wall 9	FR Plasterboard stud wall	LVH44	600mm x 600mm	-/120/30	2 x 13mm + 13mm steel stud wall
Stud Wall 10	FR Plasterboard steel & timber stud wall	LVH44	450mm x 450mm	-/120/120	2 x 13mm or 2 x 16mm steel/timber stud wall
Stud Wall 11	FR Plasterboard steel stud & timber wall	LVH44	450mm x 450mm	-/90/90	16mm + 16mm steel stud wall
Stud Wall 12	FR Plasterboard steel stud wall	LVH44	600mm x 600mm	Up to -/120/30	13mm + 13mm or 16mm + 16mm steel stud wall
Stud Wall 13	FR Plasterboard steel stud & timber wall	LVH44	600mm x 600mm	-/60/30	13mm + 13mm steel stud wall
Stud Wall 14	FR Plasterboard timber stud wall	LVH44	450mn x 450mm	-/60/60	13mm + 13mm timber stud wall
Stud Wall 15	FR Plasterboard timber stud wall	LVH44	600mm x 600mm	-/90/30	16mm + 16mm timber stud wall
Stud Wall 16	FR Plasterboard timber stud wall	LVH44	600mm x 600mm	/120/30	2 x 13mm + 2 x 13mm timber stud wall
Stud Wall 17	FR Plasterboard timber stud wall	LVH44	600mm x 600mm	-/120/30	2 x 16mm + 2 x 16mm timber stud wall
Stud Wall 18	FR Plasterboard steel stud wall	LVH44	600mm x 600mm	-/60/30	13mm + 13mm steel stud wall
Stud Wall 19	FR Plasterboard steel stud wall	LVH44	600mm x 600mm	-/90/30	16mm + 16mm steel stud wall
Stud Wall 20	FR Plasterboard steel stud wall	LVH44	600mm x 600mm	-/120/30	2 x 13m or 2 x 16mm steel stud wall
Stud Wall 21	FR Plasterboard timber stud wall	LVH44	600mm x 600mm	Up to -/90/30	13mm or 16mm timber stud wall

Approval Reference : Stud Walls 1-9, 12, 14-21; EXOVA EWFA 33233400
Stud Walls 10-11, 13: CSIRO FCO 3487
Standard Version : AS1530.4 2014
