Shaft Walls

Damper installation system approved on Shaft Wall system.

System No.	Building Element	Product	Max Size	System Detail	Approval Reference

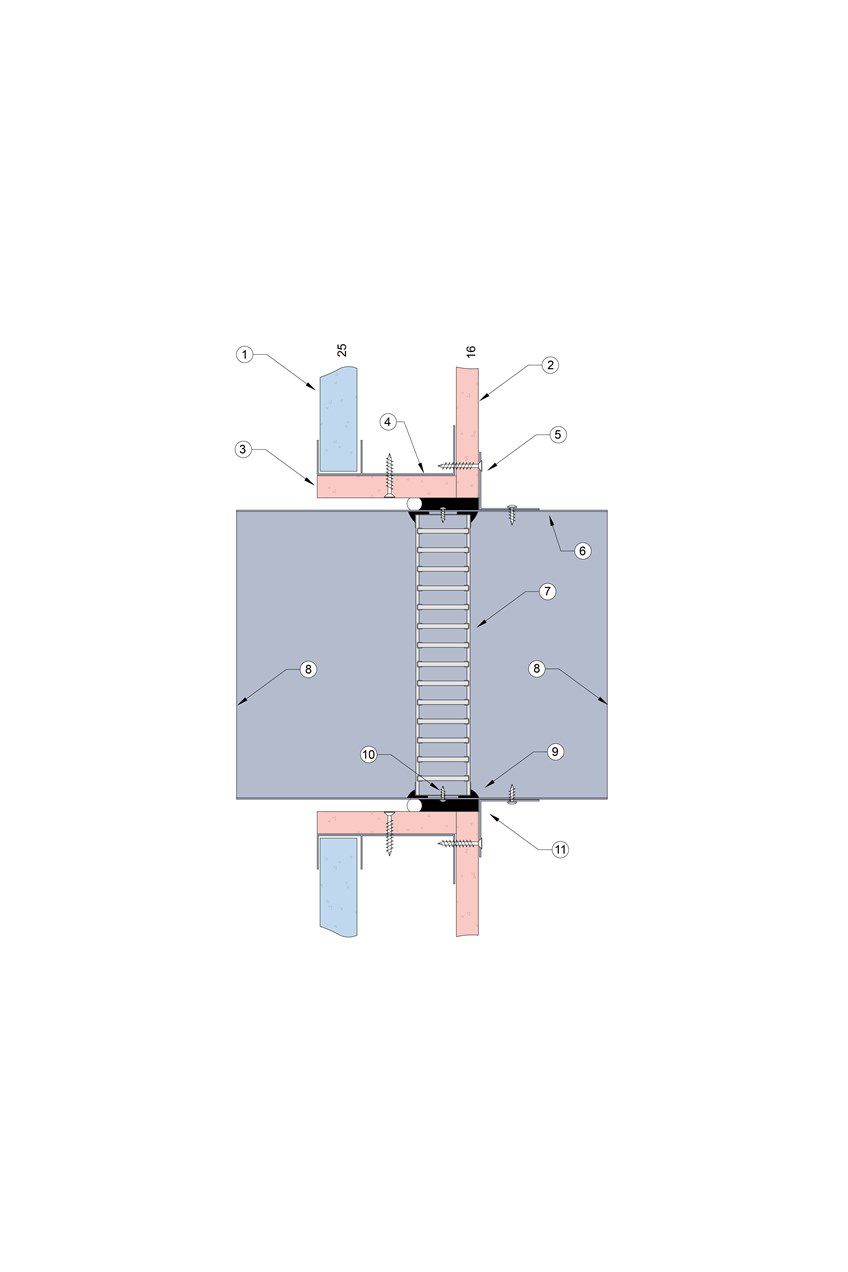

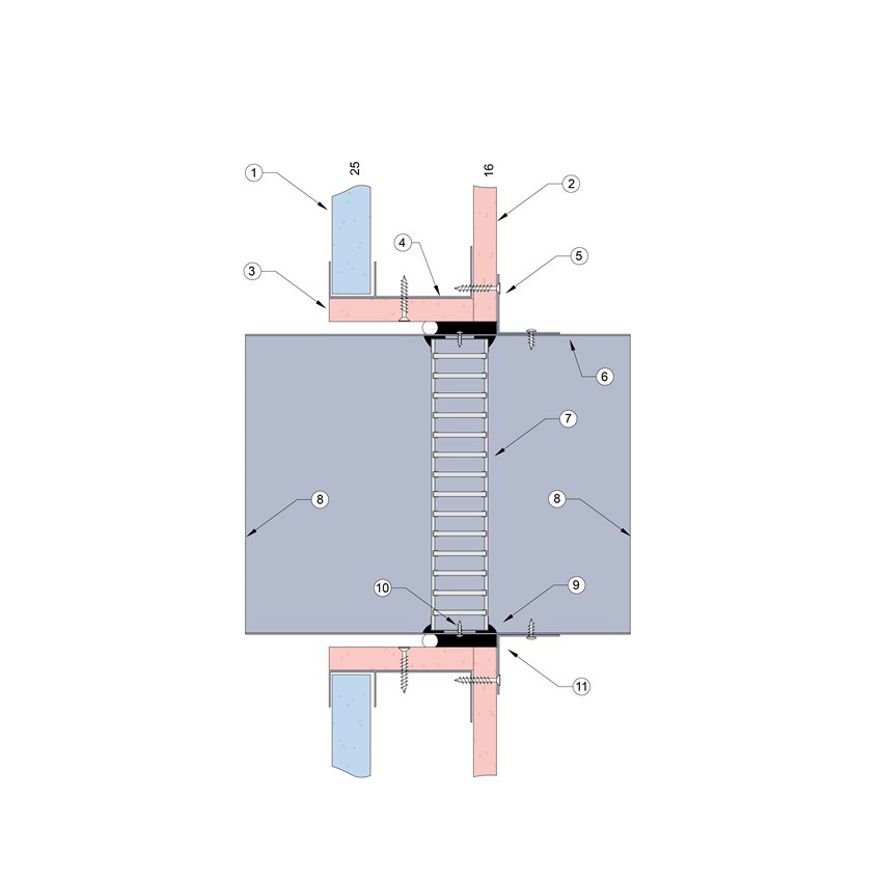

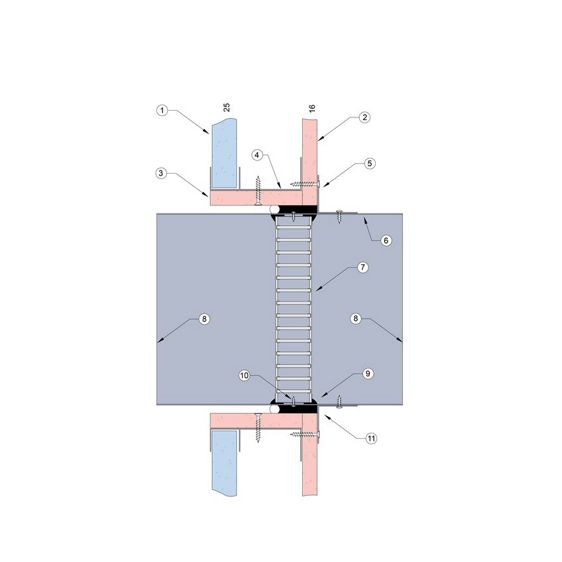

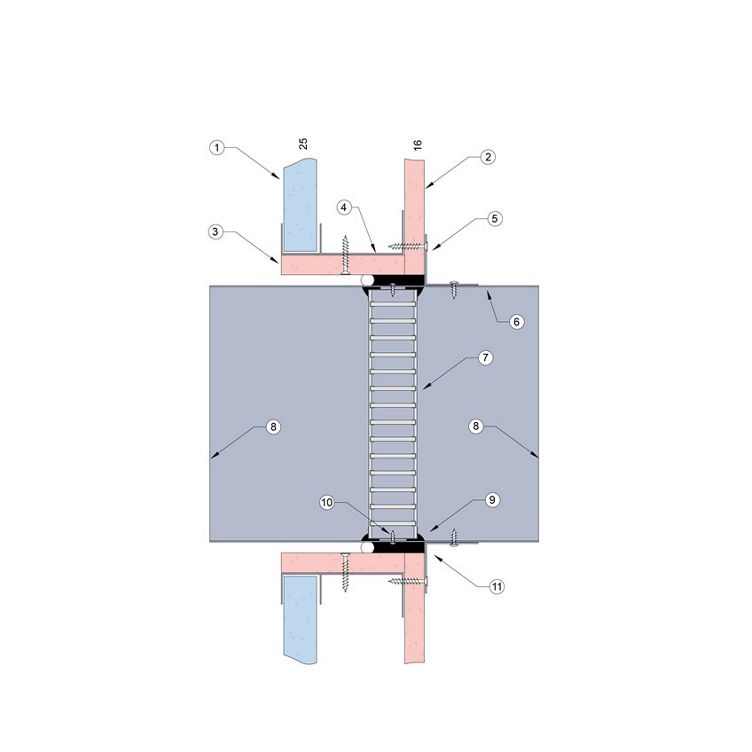

Shaft Wall 1	FR Plasterboard riser shaft wall	LVH44	450x450mm	25mm shaft wall liner + 16mm FR with plasterboard lining	CSIRO FCO 3487
Shaft Wall 2	FR Plasterboard riser shaft wall	LVH44	450x450mm	25mm shaft wall liner + 2 x 16mm FR with plasterboard lining	CSIRO FCO 3487
Shaft Wall 3	FR Plasterboard riser shaft wall	LVH44	450x450mm	25mm shaft wall liner + 2 x 13mm FR with plasterboard lining	CSIRO FCO 3487
Shaft Wall 4	FR Plasterboard laminated shaft wall	LVH44	600mm x 600mm	3 x 13mm or 3 x 16mm laminated FR plasterboard	EXOVA EWFA 33233400
Shaft Wall 5	FR Plasterboard laminated shaft wall	LVH44C Circular	Up to 450mm diameter	3 x 13mm or 3 x 16mm laminated FR plasterboard	EXOVA EWFA 33233400

FRL: Up to -/120/120
Standard Version: AS1530.4 2014
