AAS7503 AURA Perimeter Seal (Obsolete)

Location

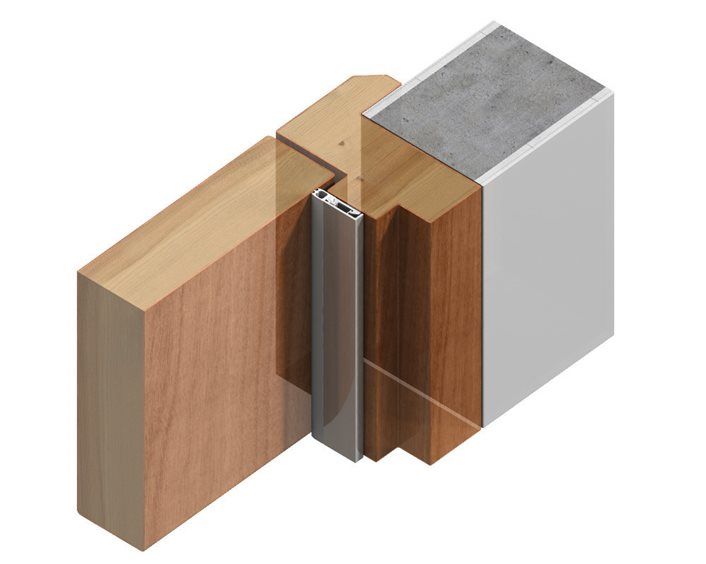

Head and jambs of single swing doors.

Standard Lengths
1m and 2.1m
Doorset packs Single doorset (SDS): (1 x 1mm, 2 x 2.1m)
Long single doorset (LSDS): (1 x 1m, 2 x 2.75m)
Double doorset (DDS): (3 x 2.1m)
Long double doorset (LDDS): (1 x 2.1m , 2 x 2.75m).
Other lengths available for special order

Finishes
Silver anodised aluminium with grey silicone gasket.

Fixing
Fixing holes pre-drilled and slotted for positional accuracy.
Screw pack supplied.

Performance
Fire:  Approved for use on proprietary AS1905.1 fire doors for up to 4 hour fire rating
Acoustic:  ISO 10140-2 & AS/NZS ISO717.1
Weighted Sound Reduction Index:  31 dB (AAS7503 & AAS8501 on a standard architectural door)
Durability: 1,000,000 cycles on full-size door assemblies
