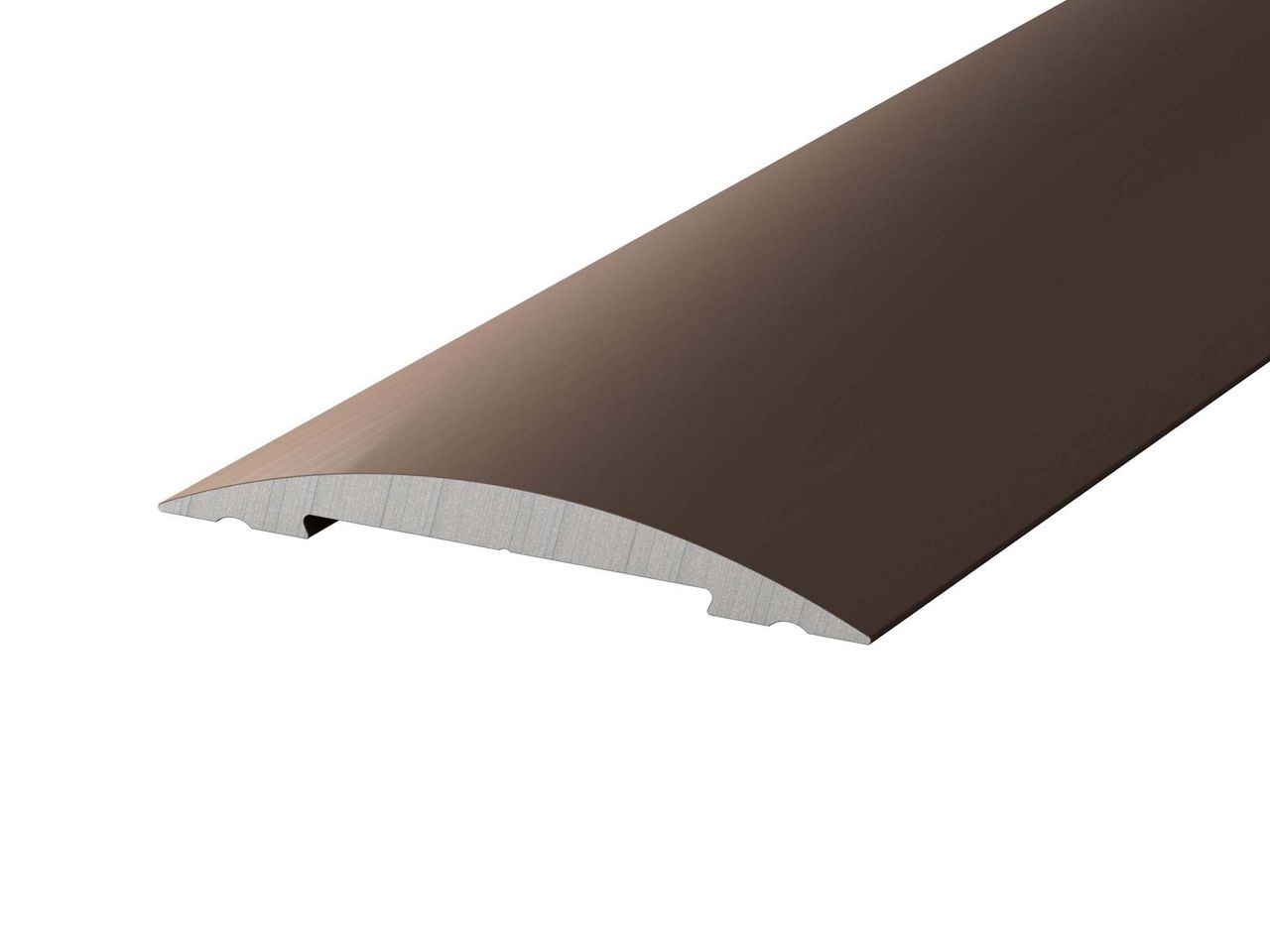

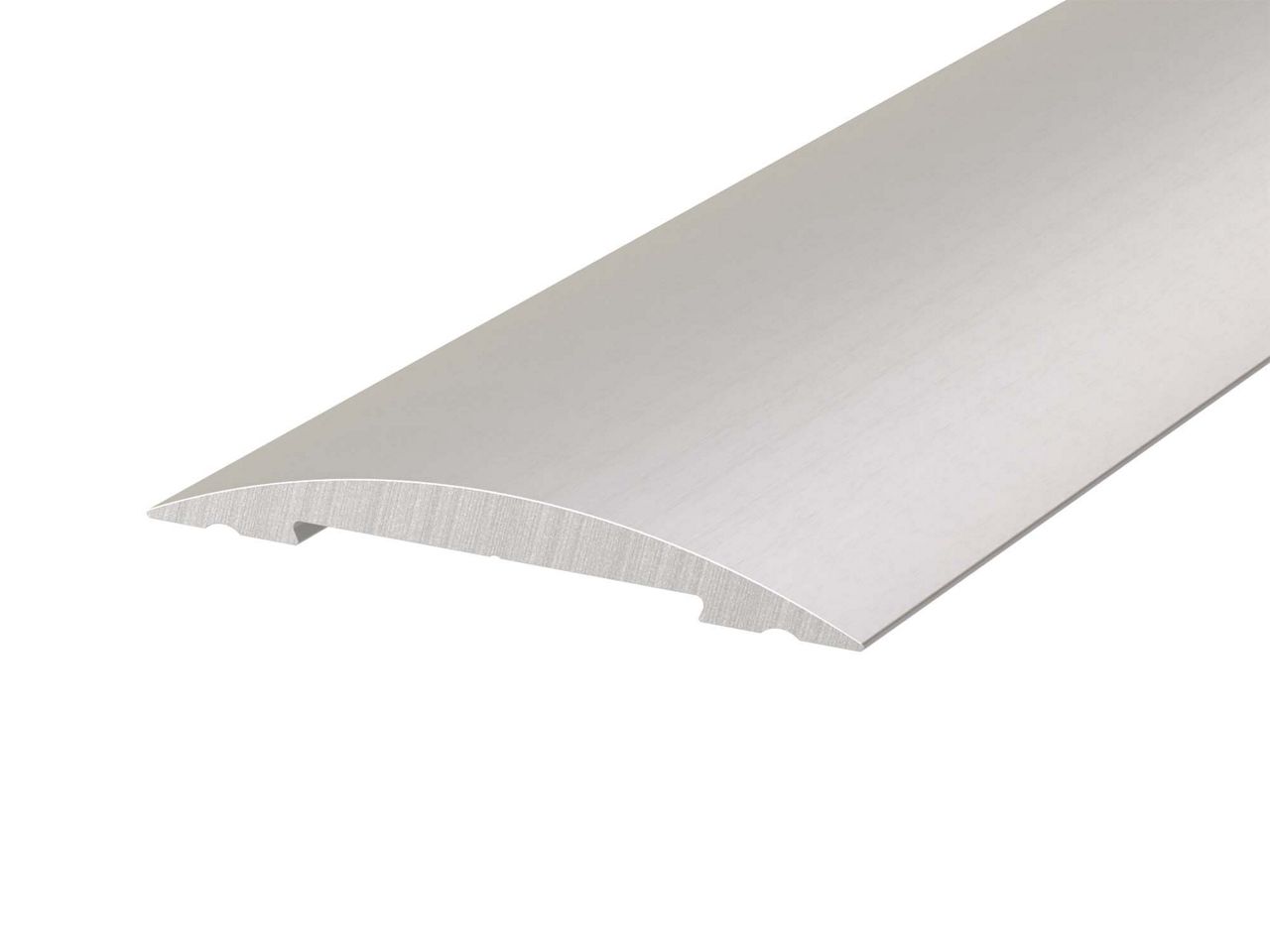

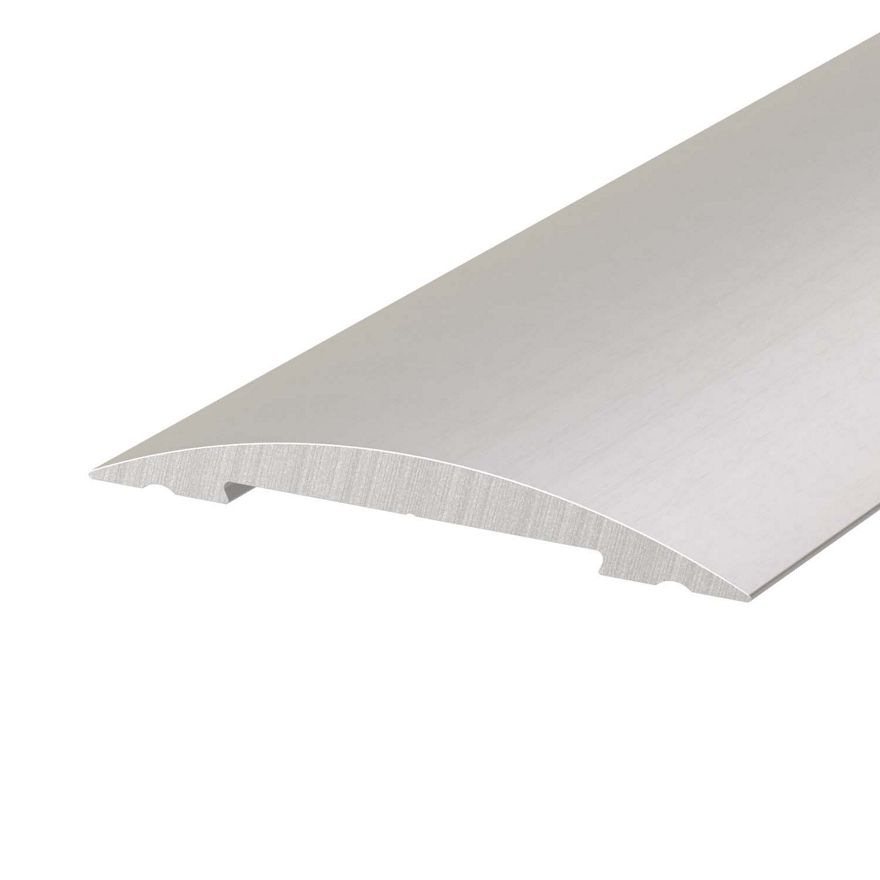

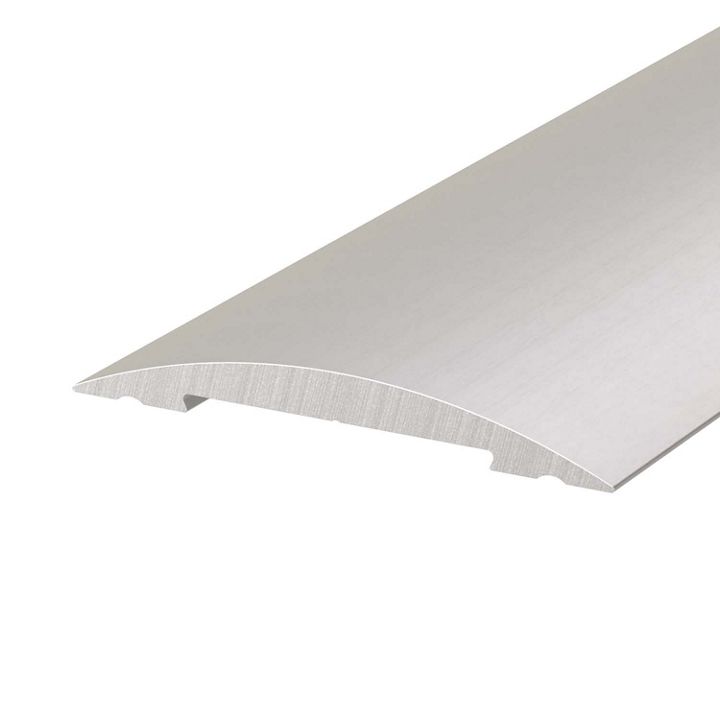

Used where the door sill is uneven, this threshold plate creates a level sealing surface that greatly enhances the ability of door bottom seals to restrict the passage of sound, smoke, energy or weather.
LAS4002 Threshold Plate
Cookie consent
This video is hosted by YouTube. By showing the external content you accept the terms and conditions of
www.youtube.com.
*Your choice will be saved in a cookie until you have closed your browser.
Key benefits
Creates a flat sealing surface.
Enhances the performance of other sealing systems.
Slim-line geometry satisfies AS1428.1 access for people with disability requirements.
Durable hard wearing anodised finish.
Standard lengths 1m, 1.5m and 2.1m. Other lengths to special order.
Gap sizes Minimum 6mm door undercut.
Fixing method Mechanically fixed to threshold with supplied screw pack or adhered with construction adhesive.
Finishes Silver anodised aluminium.
Approvals
Fire: Tested in accordance with AS1530.4 on proprietary AS1905.1 fire door assemblies up to 4 hour rating. Sound: Acoustically tested as part of a system in accordance with ISO10140-2 and AS/NZS717.1. Bushfire: Approved for use on proprietary fire door assemblies for Bushfire attack levels of Flame Zone (FZ) classification or less. Disability: Comply to AS1428.1 access for disability requirement
This fully mortised aluminium automatic drop seal features a silicone rubber gasket and internal fins. It is used to close the gap under single swing doors to maintain their acoustic, smoke or energy efficiency performance.
LAS8002 si Drop Seal
This face-fixed (or semi-mortised) aluminium automatic drop seal features a silicone rubber gasket and internal fins. It is used to close the gap under single swing doors to maintain their acoustic, smoke or energy efficiency performance.
LAS8003 si Drop Seal
This face fixed (or semi mortised) aluminium automatic drop seal is used to close the gap under single swing doors to maintain their acoustic, smoke or energy efficiency performance.
LAS8006 si Drop Seal
This face-fixed (or semi-mortised) aluminium automatic drop seal features a silicone rubber gasket and internal fins. It is used to close the gap under single swing doors to maintain their acoustic, smoke or energy efficiency performance.
