LAS8001 si Drop Seal

This fully mortised aluminium automatic drop seal features a silicone rubber gasket and internal fins. It is used to close the gap under single swing doors to maintain their acoustic, smoke or energy efficiency performance. The seal incorporates a high efficiency spring loaded mechanism that extends the seal as the door swings shut and automatically retracts it as the door is opened by just a few centimetres.

LAS8001 si Drop Seal
LAS8001 si Drop Seal

  • Key benefits

    • Fully concealed in bottom of door.
    • Dual internal sealing fins enhance acoustic and smoke containment performance.
    • Supplied with high performance fire rated silicone rubber gasket.
    • Fully automatic, no power connection required.
    • Simple adjustment to suit varying door gap requirements.
    • Proven long term reliability.

    Standard lengths

    • 820mm (may be trimmed back to 720mm)
    • 920mm (may be trimmed back to 820mm)
    • 1070mm (may be trimmed back to 920mm)
    • 1220mm (may be trimmed back to 1070mm).

    Gap sizes
    Accommodates and seals gaps up to 13mm. Greater gaps can be sealed if product is used with a threshold plate.

    Fixing method

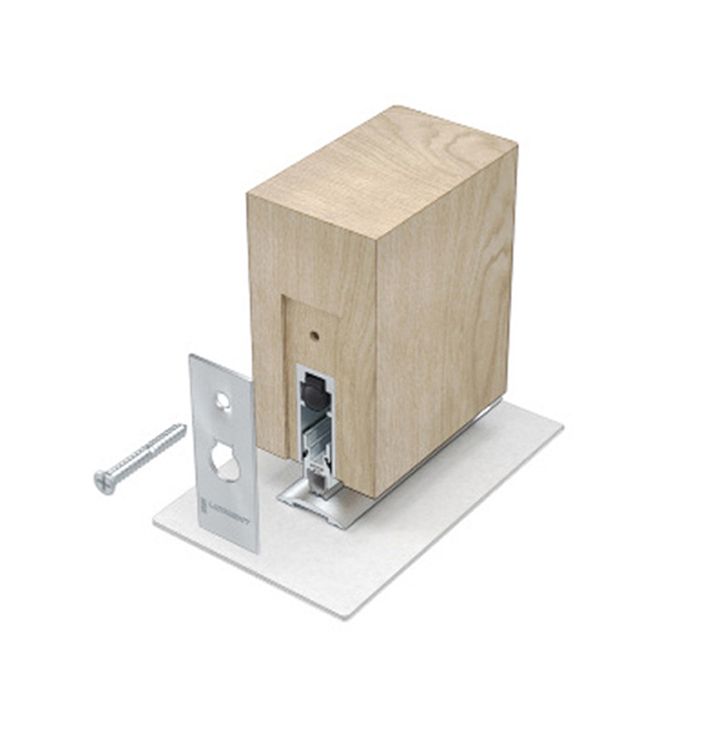

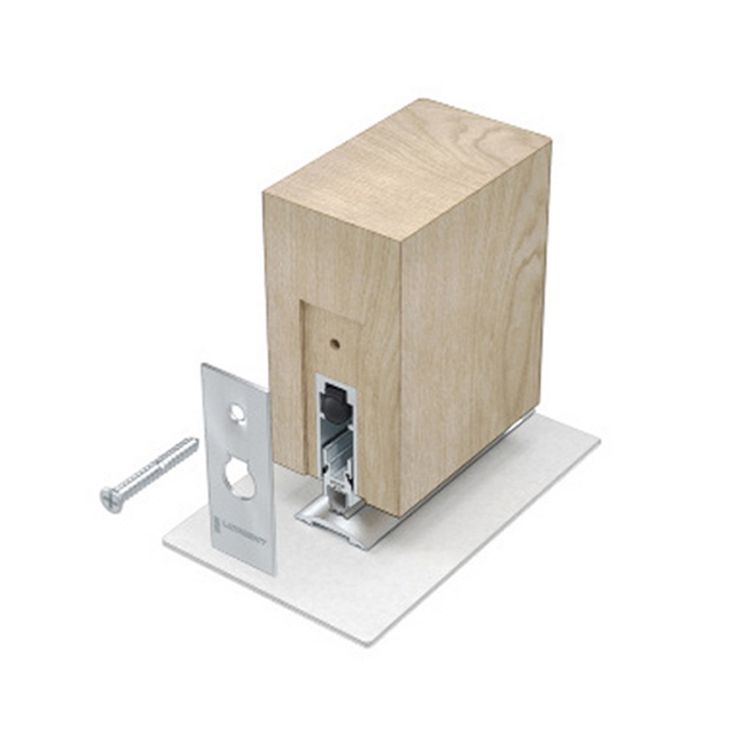

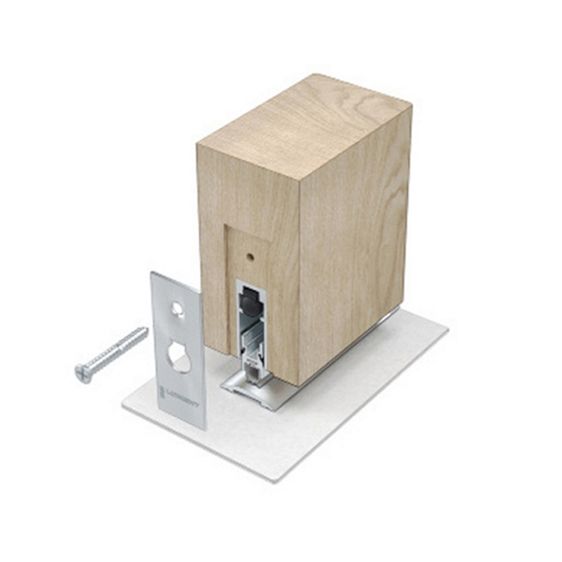

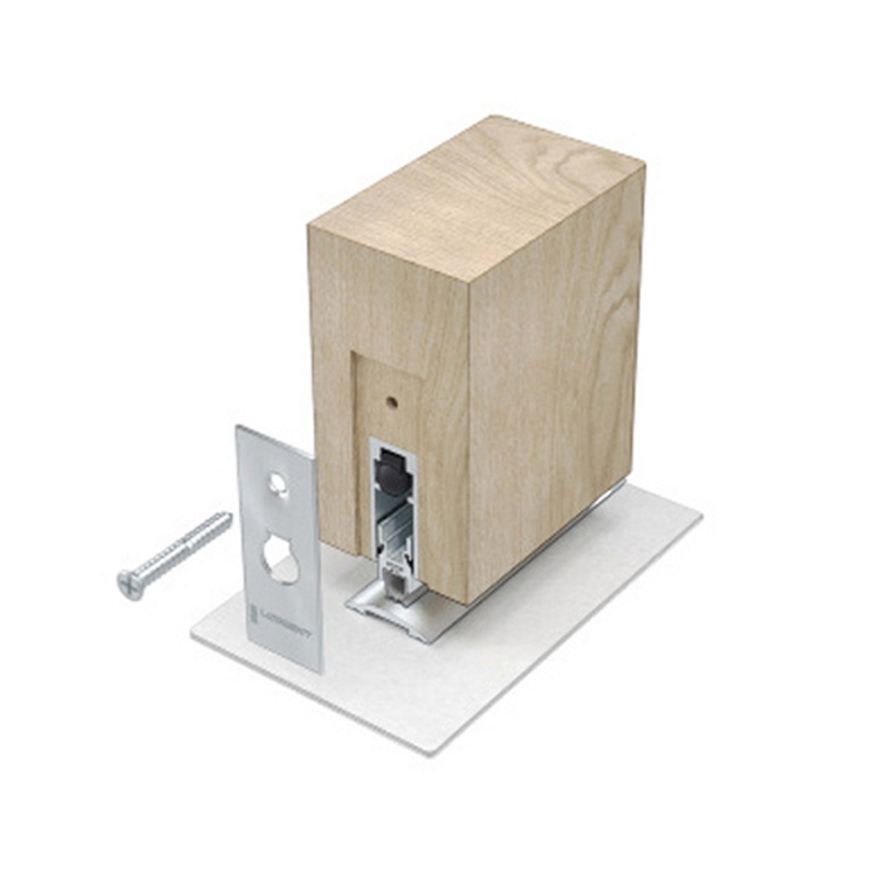

    Fits into a 15mm wide x 35mm deep groove and retained in place with screw fixed stainless steel end plates.

    Finish

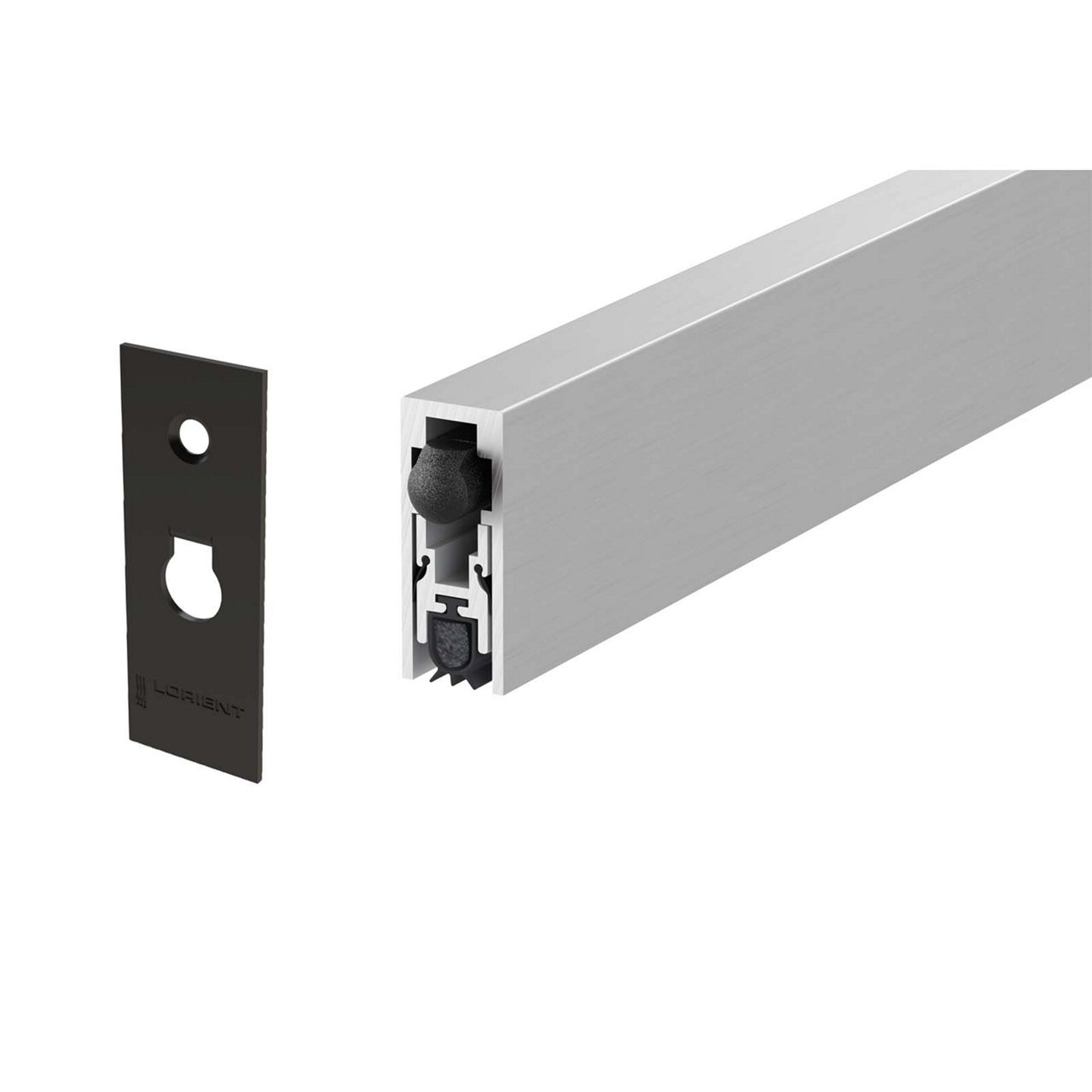

    • Silver anodised aluminium with stainless steel end plates and grey silicone rubber gasket.
    • Black anodised aluminium with black stainless steel end plates and black silicone rubber gasket.

    Approvals

    • Fire: Tested in accordance with AS1530.4 on proprietary AS1905.1 fire door assemblies for up to 4 hour rating.
    • Smoke: Tested in accordance with AS1530.7 on AS6905 compliant door assemblies. Conforms with BCA Specification C3.4 smoke sealing requirements
    • Sound: Acoustically tested in accordance with ISO10140-2 and AS/NZS717.1 with ratings up to 40Rw on appropriate rated assemblies.
    • Durability: Long term mechanical test, completing 100,000 cycles without failure.
  • General
    LAS8001 si datasheet(PDF, 274 KB)
    LAS8001 si drop seal fitting instruction(PDF, 324 KB)
    Lorient Architectural, Acoustic, Smoke and Fire Containment Systems brochure(PDF, 6 MB)
    CAD
    LAS8001(DXF, 2 MB)
