LAS9050 & LAS9070 Finger Guard Seals

Key benefits

• Protection may be provided by using the LAS9050 on the hinge knuckle side and the LAS9070 to the reveal side.
• LAS9070 includes unique, integral acoustic sealing fins and may be used in conjunction with the LAS7001 si and LAS8001 si to create a comprehensive acoustic sealing and finger protection system.

Standard lengths
2.1m. Other lengths to special order.

Location
Jambs of hinged doors. LAS9070 can be used on doors with an opening of 180°.

Fixing method
Fixing screws are supplied. Fixing holes are pre-drilled and slotted to allow the seals to be adjusted and positioned accurately. A PVC cover strip to conceal fixings is supplied.
Note: Do not use LAS9050 on 180° opening door.

Approvals
Durability: Tested over 200,000 full opening and closing cycles without any sign of degradation.

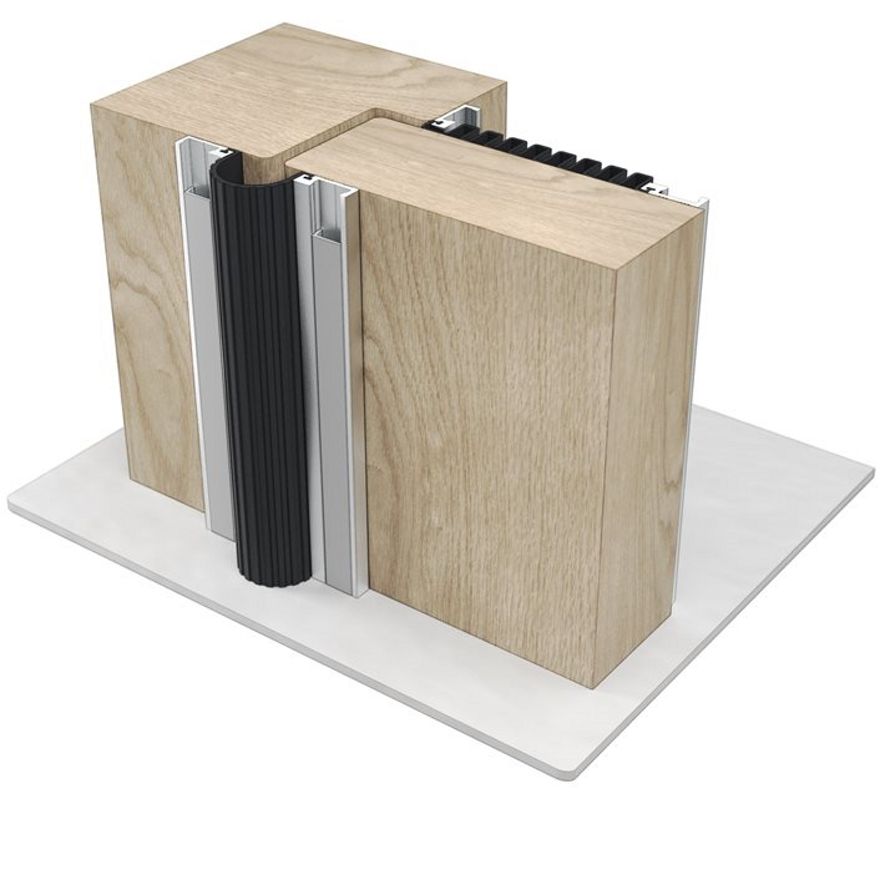

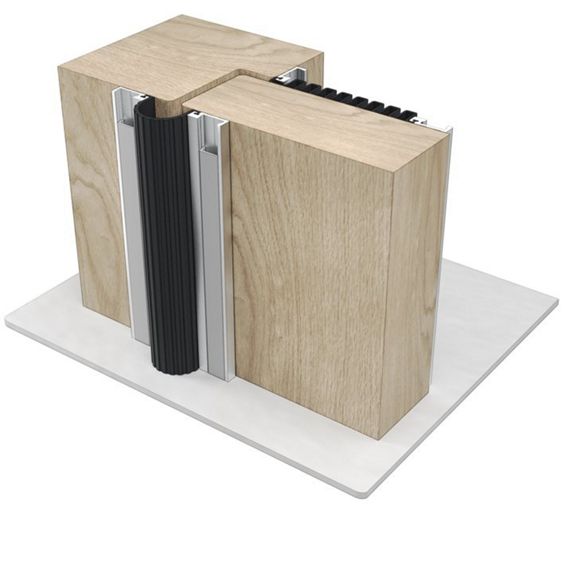

Click here to see an animation of our Finger guard in situ.
