LAS7005 si Perimeter Seal

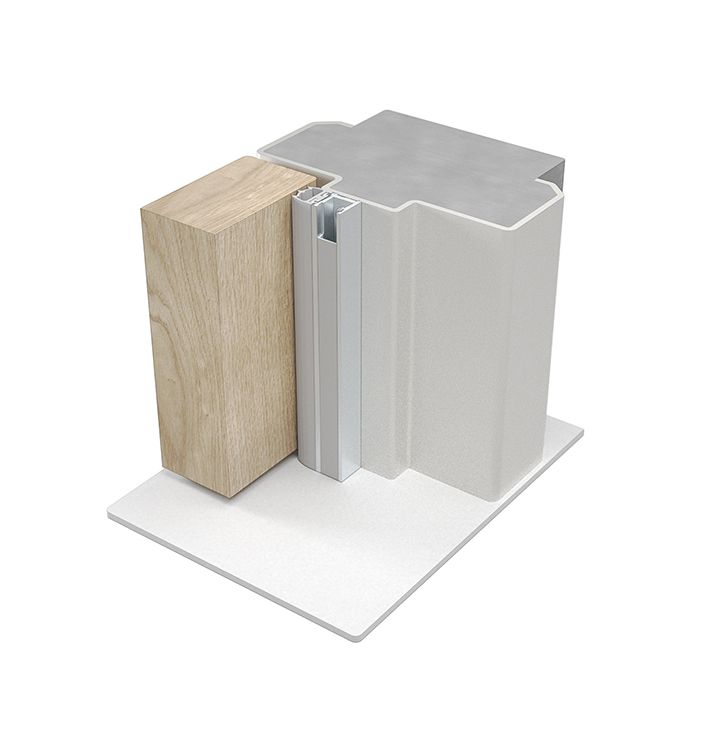

A robust, medium duty, stop mounted compression seal incorporating an anodised aluminium carrier fitted with fire rated silicone rubber gasket and non-shrink, click-fit cover strip. The seal is fitted to the head and jambs of the door frame to create an effective seal between the frame and the door face.

LAS7005 si Perimeter Seal
LAS7005 si Perimeter Seal

  • Key benefits

    • Compact and effective acoustic seal that can easily be retrofitted to existing door assemblies.
    • Fitted with high performance fire rated silicone rubber gasket.
    • Supplied with slotted fixing holes for accurate positioning and easy adjustment.
    • Non-shrink, click fit cover strip conceals the fixing points.

    Standard lengths

    • 1m, 2.1m and 2.75m.
    • Single doorset pack (SDP): (1 x 1m, 2 x 2.1m)
    • Long single doorset pack (LSDP): (1 x 1m, 2 x 2.75m)
    • Double doorset pack (DDP): (3 x 2.1m)
    • Long double doorset pack (LDDP): (1 x 2.1m, 2 x 2.75m).

    Gap sizes
    Accommodates and seals gaps from 0mm to 10mm.

    Fixing method
    Screw fixed to the door frame with supplied screw pack.

    Finishes

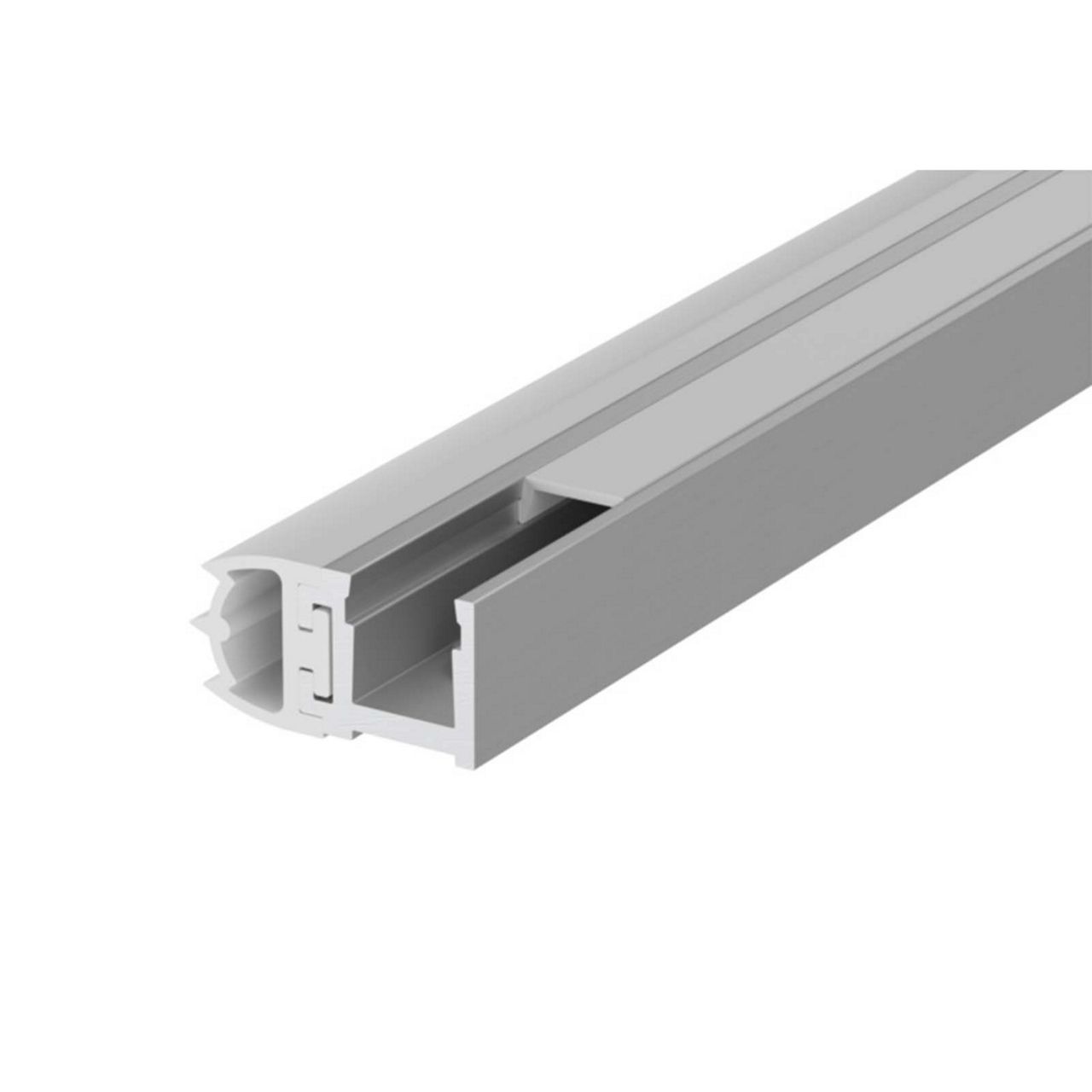

    • Silver anodised aluminium with grey silicone rubber gasket and click-fit cover strip.

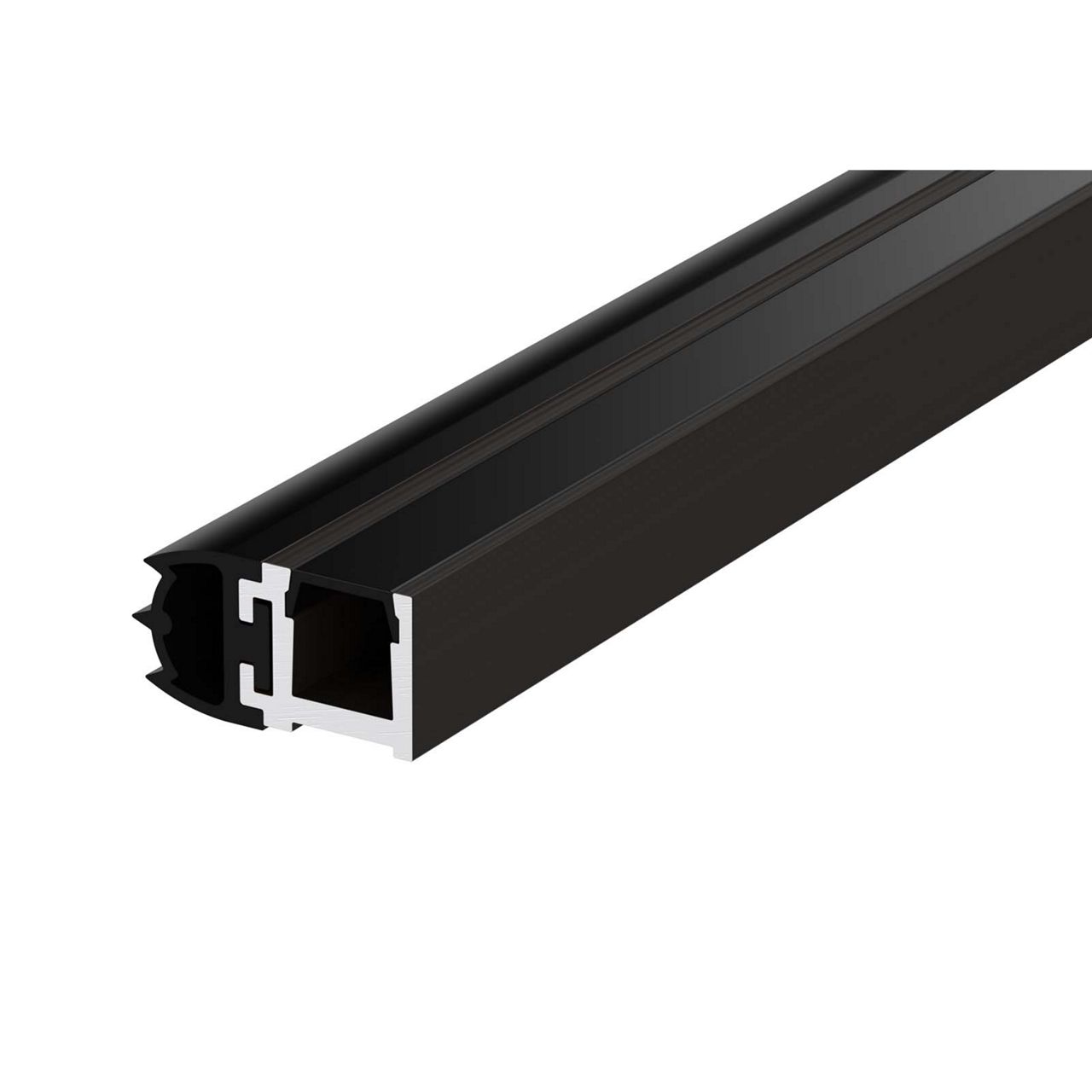

    • Black anodised aluminium with black silicone rubber gasket and click-fit cover strip.

    Approvals

    • Fire: Tested in accordance with AS1530.4 on proprietary AS1905.1 fire door assemblies for up to 4 hour rating.
    • Sound: Acoustically tested in accordance with ISO10140-2 and AS/NZS717.1 with ratings up to 33Rw on appropriate rated assemblies.
  • General
    LAS7005 si datasheet(PDF, 350 KB)
    LAS7005 si perimeter seal fitting instruction(PDF, 541 KB)
    Lorient Architectural, Acoustic, Smoke and Fire Containment Systems brochure(PDF, 6 MB)
    CAD
    LAS7005(DXF, 2 MB)
