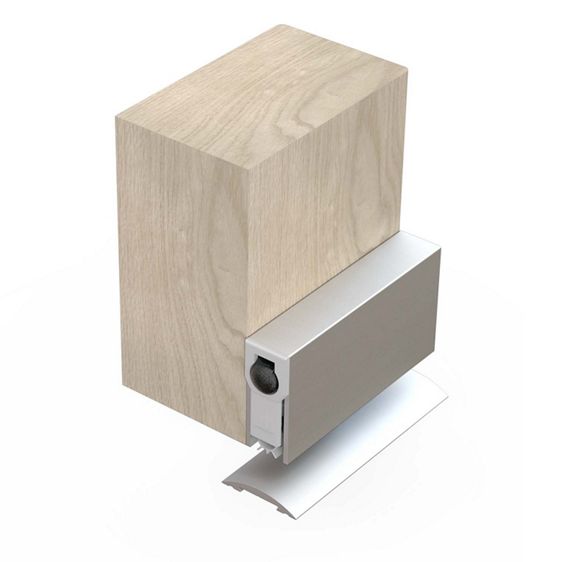

LAS8002 si Drop Seal

Key benefits

• Effective acoustic sealing solution that can easily be retrofitted to existing door assemblies.
• Quickly and easily fitted to the bottom of door.
• Can be fitted semi-mortised for a flush finish.
• Dual internal sealing fins enhance acoustic and smoke containment performance.
• Supplied with a fire rated silicone rubber gasket and aesthetic push-fit end caps.
• Fully automatic, no power connection required.
• Simple adjustment to suit varying door gap requirements.
• Proven long term reliability.

Standard lengths
435mm (may be cut back to 335mm)
535mm (may be cut back to 435mm)
635mm (may be cut back to 535mm)
735mm (may be cut back to 635mm)
820mm (may be cut back to 735mm)
920mm (may be cut back to 820mm)
1070mm (may be cut back to 920mm)
1220mm (may be cut back to 1070mm)
1400mm* (may be cut back to 1220mm)
1600mm* (may be cut back to 1400mm)

*Non-standard sizes do not hold test evidence for the approval for use. Speak to our Technical Team for advice.

Gap sizes
Accommodates and seals gaps from 1mm to 13mm. Greater gaps can be sealed if product is used with a threshold plate.

Fixing method
Face-fixed or semi-mortised to the bottom of the door.
Fixing screws are supplied.

Finish
Silver anodised aluminium with grey push-fit end caps and grey silicone rubber gasket.

Approvals
Fire: Approved for use on proprietary AS1905.1 fire doors for up to 4 hour fire rating.
Smoke: AS1530.7 smoke test data on AS6905 compliant smoke door assemblies. Conforms with BCA Specification C3.4 smoke sealing requirements.
Sound: Acoustically tested in accordance with ISO10140-2 and AS/NZS717.1 with ratings up to 37Rw on appropriate rated assemblies.
Durability: Long term mechanical test, completing 100,000 cycles without failure.
