Lorient

LAS8005 si Drop Seal

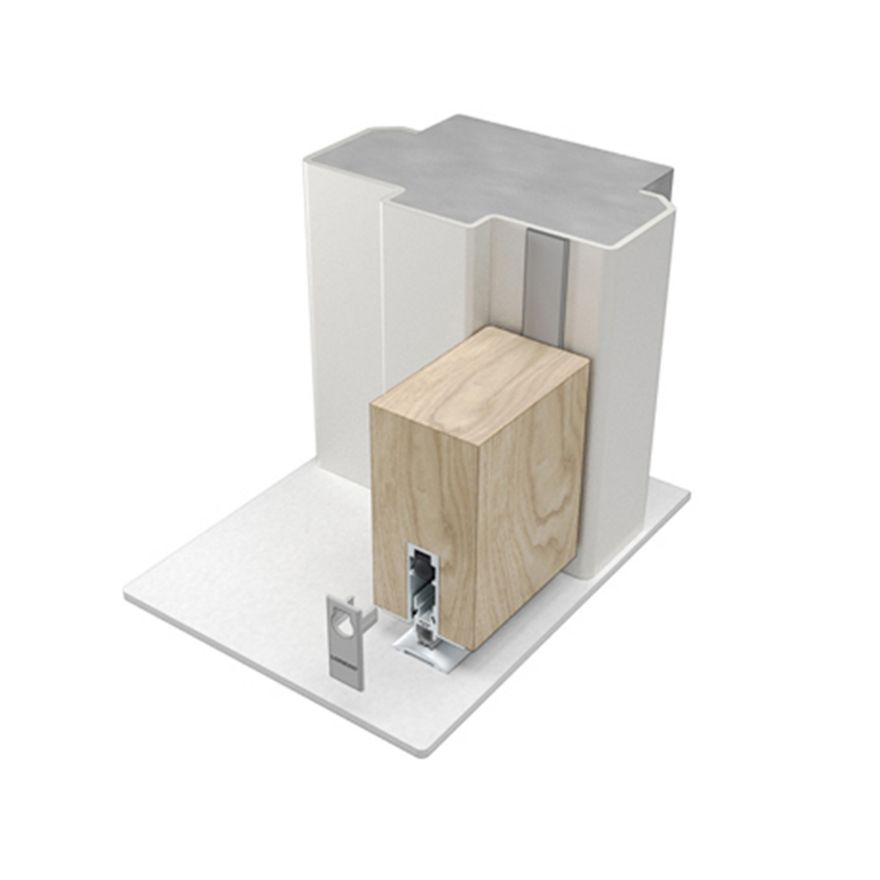

This fully mortised aluminium automatic drop seal features a silicone rubber gasket and internal fins. It is used to close the gap under single swing doors to maintain their acoustic, smoke or energy efficiency performance. The seal incorporates a high efficiency spring loaded mechanism that extends the seal as the door swings shut and automatically retracts it as the door is opened by just a few centimetres.

LAS8005 si Drop Seal
LAS8005 si Drop Seal

  • Key benefits

    • Fully concealed and mechanically fixed to the bottom of the door through the flanges.
    • Dual internal sealing fins enhance acoustic and smoke containment performance.
    • Supplied with high performance fire rated silicone rubber gasket and aesthetic colour matched end caps.
    • Fully automatic, no power connection required.
    • Simple adjustment to suit varying door gap requirements.
    • Proven long term reliability.

    Standard lengths
    435mm (may be cut back to 335mm)
    535mm (may be cut back to 435mm)
    635mm (may be cut back to 535mm)
    735mm (may be cut back to 635mm)
    820mm (may be cut back to 735mm)
    920mm (may be cut back to 820mm)
    1070mm (may be cut back to 920mm)
    1220mm (may be cut back to 1070mm)
    1400mm* (may be cut back to 1220mm)

    *Non-standard sizes do not hold test evidence for the approval for use. Speak to our Technical Team for advice.

    Gap sizes
    Accommodates and seals gaps up to 13mm. Greater
    gaps can be sealed if product is used with a threshold plate.

    Fixing method
    Fits into a 15mm wide x 37mm deep groove and retained in place by screw fixing through the seal flanges.

    Finishes
    Silver anodised aluminium with stainless steel end plates and grey silicone rubber gasket.

  • General
    LAS8005 si drop seal fitting instruction(PDF, 399 KB)
    LAS8005 si datasheet(PDF, 365 KB)
    Lorient Architectural, Acoustic, Smoke and Fire Containment Systems brochure(PDF, 6 MB)
    CAD
    LAS8005(DXF, 2 MB)
