LAS1212 & LAS1515 Batwing^® Acoustic Smoke Seal

Key benefits

• Seals restrict the spread of medium temperature smoke (200°C).
• Highly effective acoustic seal that can be retrofitted to existing door assemblies.
• Low friction curved elastomeric fins spring back to original shape to provide continuous performance.

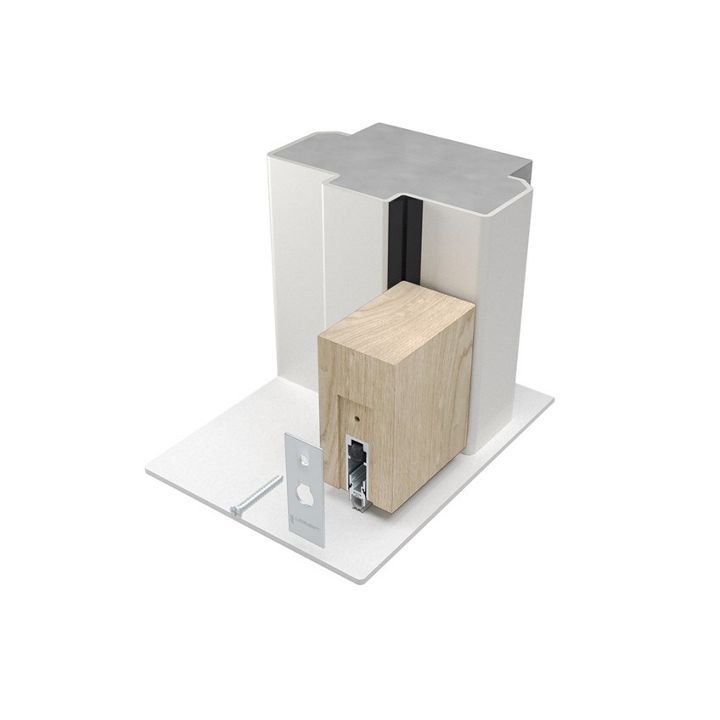

• Discreetly positioned in frame rebate to provide a fully concealed sealing solution.
• Simple peel-and-stick installation, our aggressive self-adhesive backing is tested on many surfaced to ensure seal longevity.

Standard lengths
1m, 2.1m and 2.75m.
Single doorset (SDS): (1 x 1m, 2 x 2.1m)
Long single doorset (LSDS): (1 x 1m, 2 x 2.75m)
Double doorset (DDS): (3 x 2.1m)
Long double doorset (LDDS): (1 x 2.1m, 2 x 2.75m).

Gap sizes
LAS1212 – 2-3mm.
LAS1515 – 3mm.

Fixing method
Aggressive film backed self-adhesive.

Finishes
Standard colour: Black with black fins and clear.
(Note: Clear does not restrict light penetration).

Approvals
Fire: Tested in accordance with AS1530.4 on proprietary AS1905.1 fire door assemblies for up to 4 hour rating.
Smoke: AS1530.7 smoke test data on AS6905 compliant smoke door assemblies.
Sound: Acoustically tested in accordance with ISO10140-2 and AS/NZS717.1 with ratings up to 39Rw on appropriate rated assemblies.
Durability: Long term mechanical test, completing 1,000,000 cycles without failure.
